Adjusting Drain Box to Drip Tray Tube Single Group

Tools Needed: 2 - 7/16" wrenches (we used a box wrench and a socket, but two box wrenches or crescent wrench will work), pliers, lubrication.

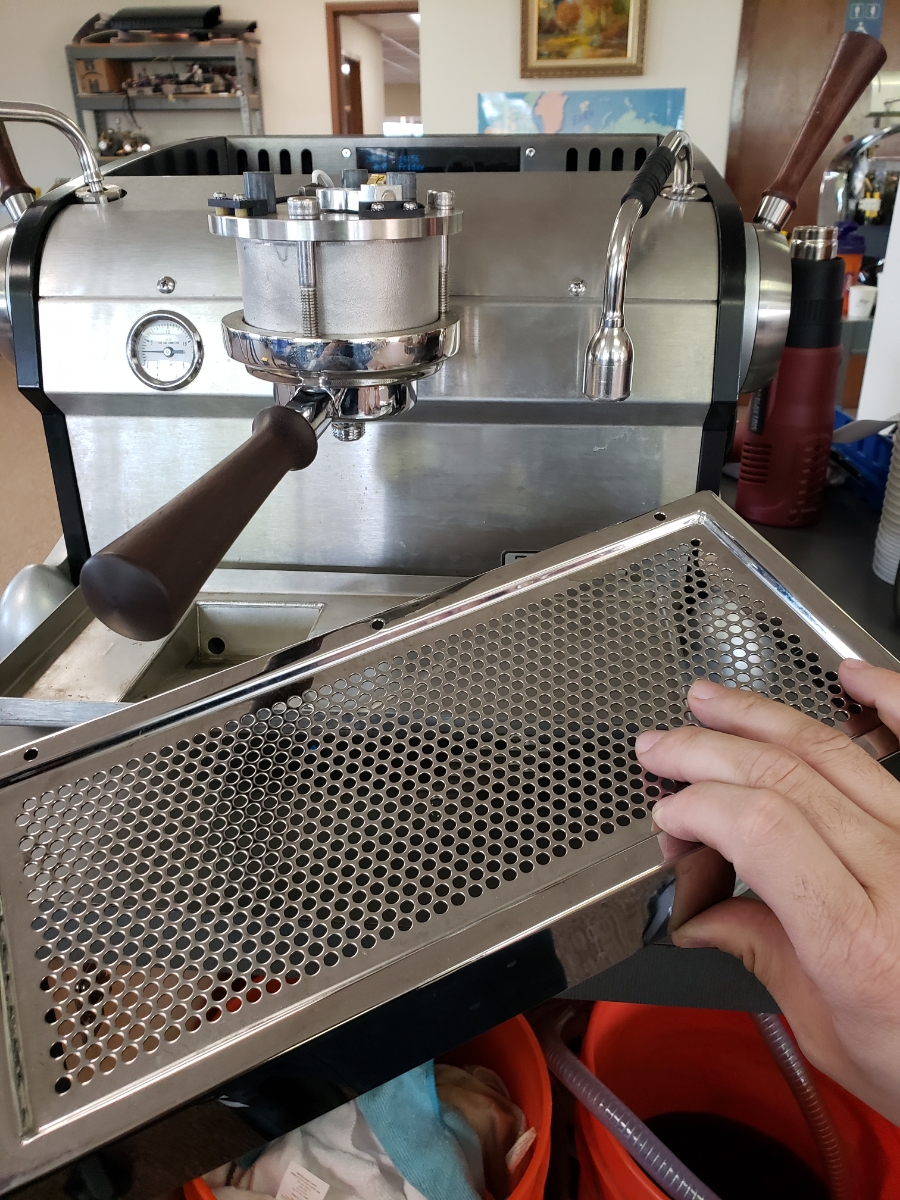

Remove cup tray cover

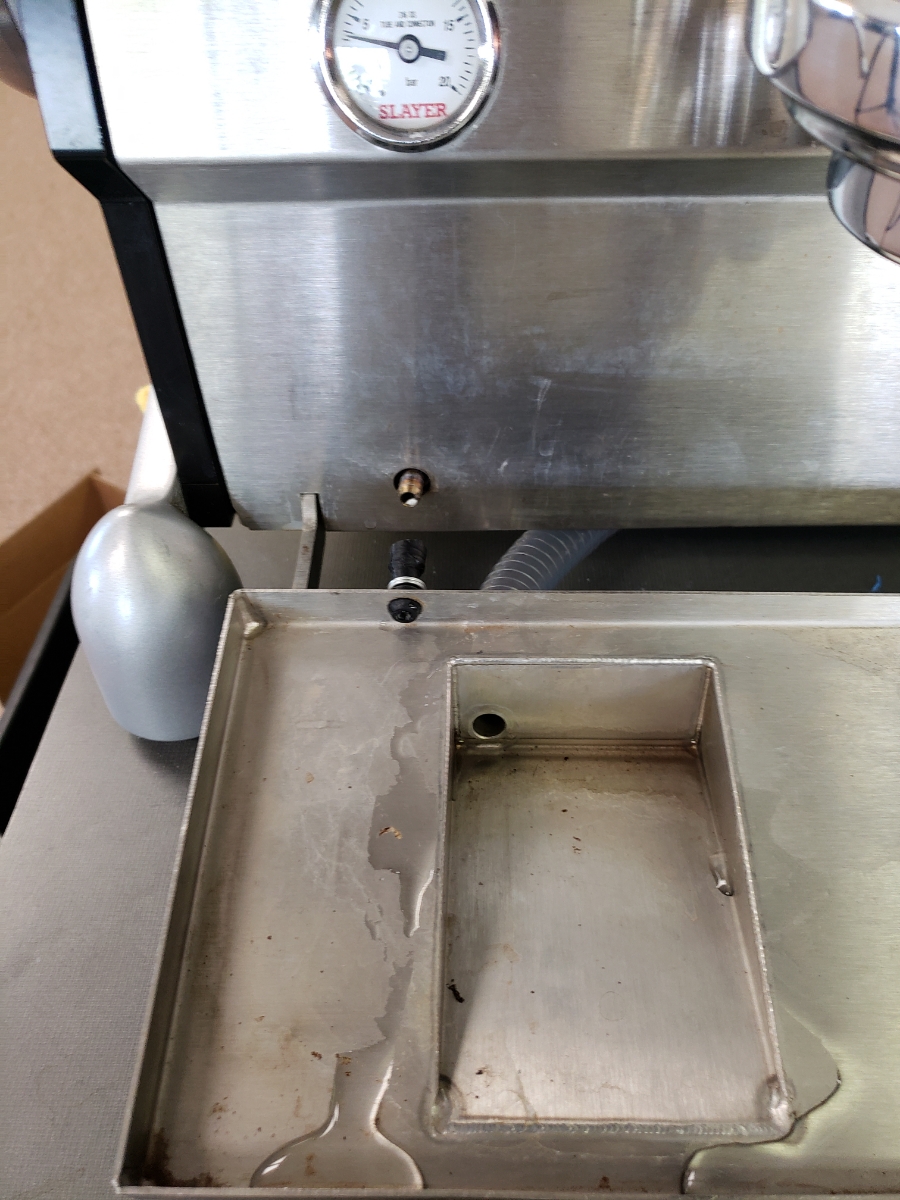

Remove the 4 - 7/16" bolts on the drip tray liner

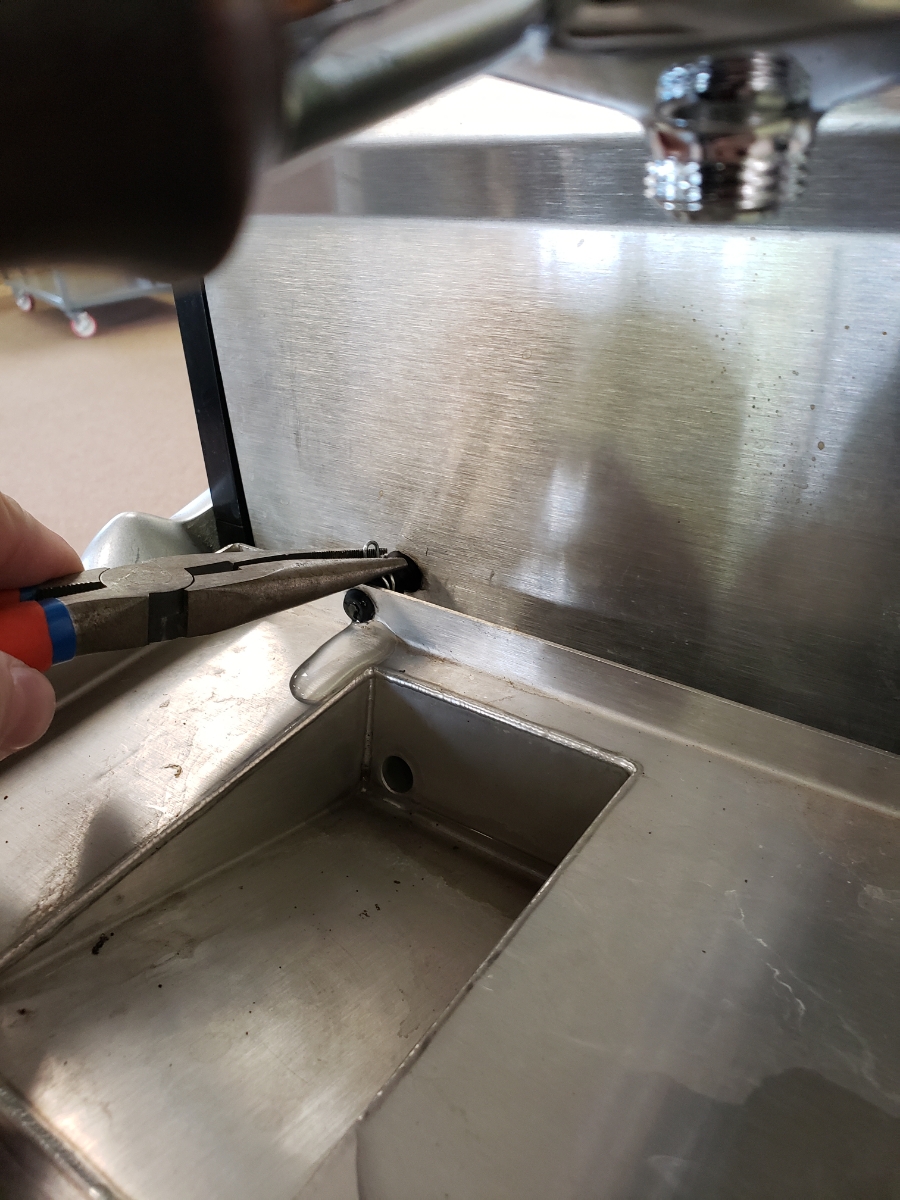

Loosen spring clip off of barbed fitting

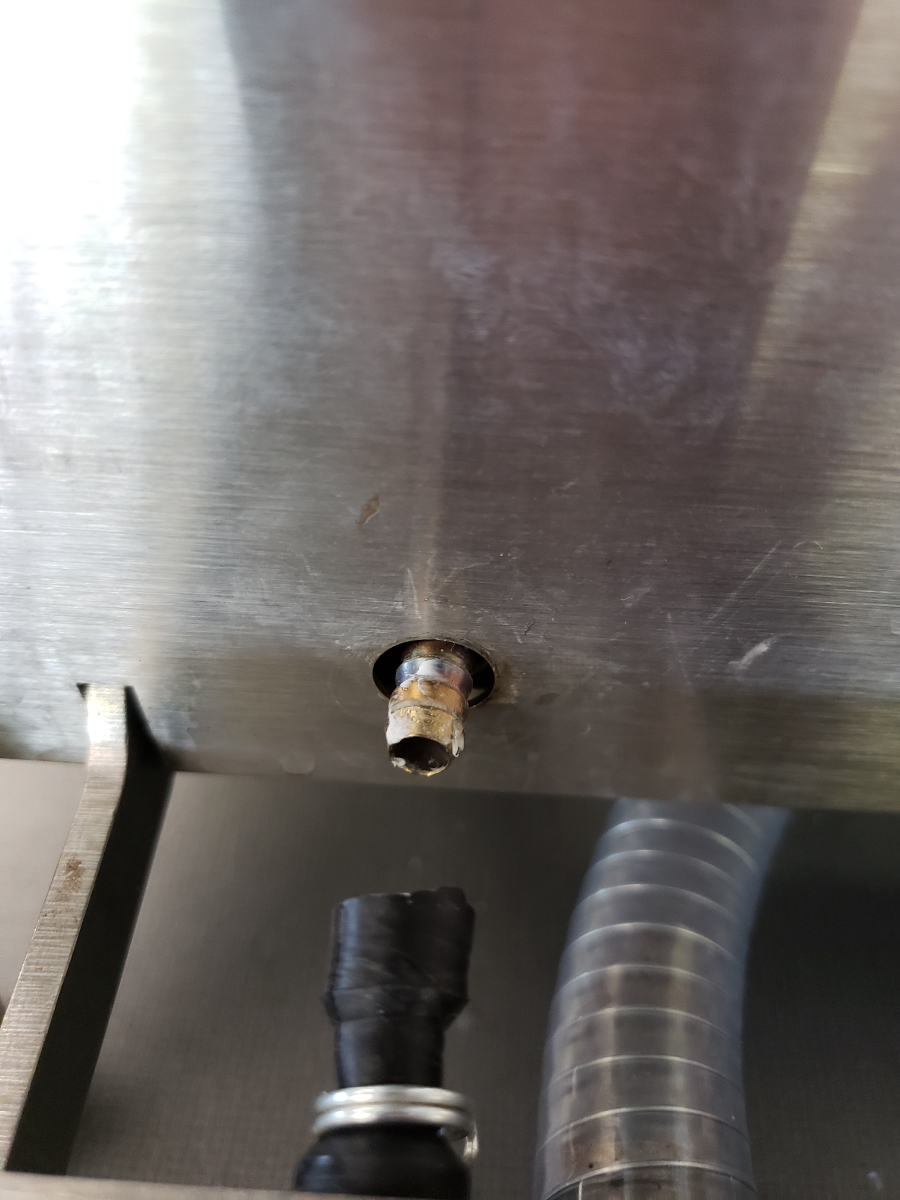

Remove tube from barbed fitting.


Lubricate the Barbed fitting

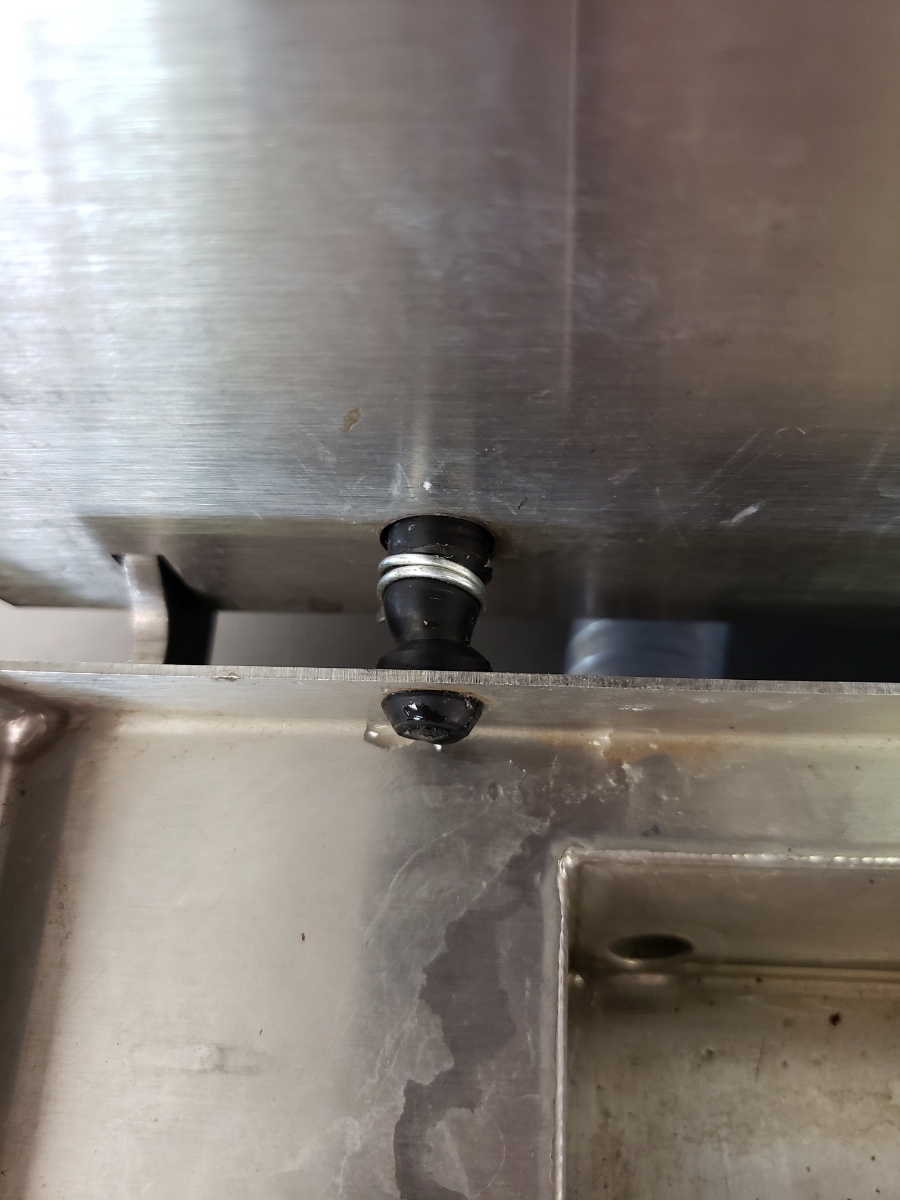

Press the tube onto the barbed fitting, being sure to press passed the reduction.


Reset the spring clip
Re-attach the drip tray liner with the 4 bolts

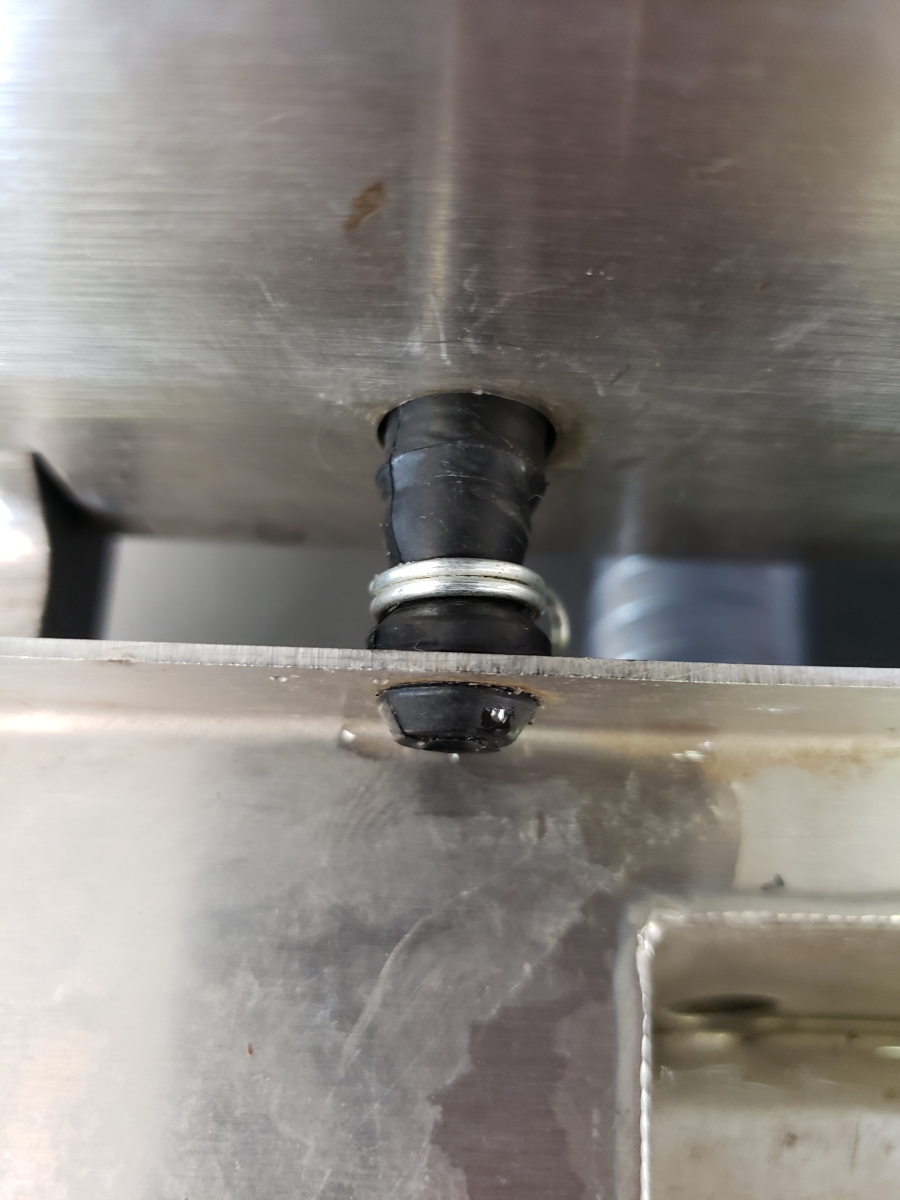

The tube should be straight.
