Checking Brew Element Resistance, Steam LP
Time Needed: 10 minutes
Parts Needed: 30000-20130 Element, Brew, 600 Watt, 220V
30000-20140 Gasket, Element, Teflon
Need to purchase these parts? Download the pre-filled order form and submit a ticket with the PDF attached.
Tools Needed: Multimeter, Phillips screwdriver
Step 1: Turn off both the power and breaker switches on the lower underside of machine.

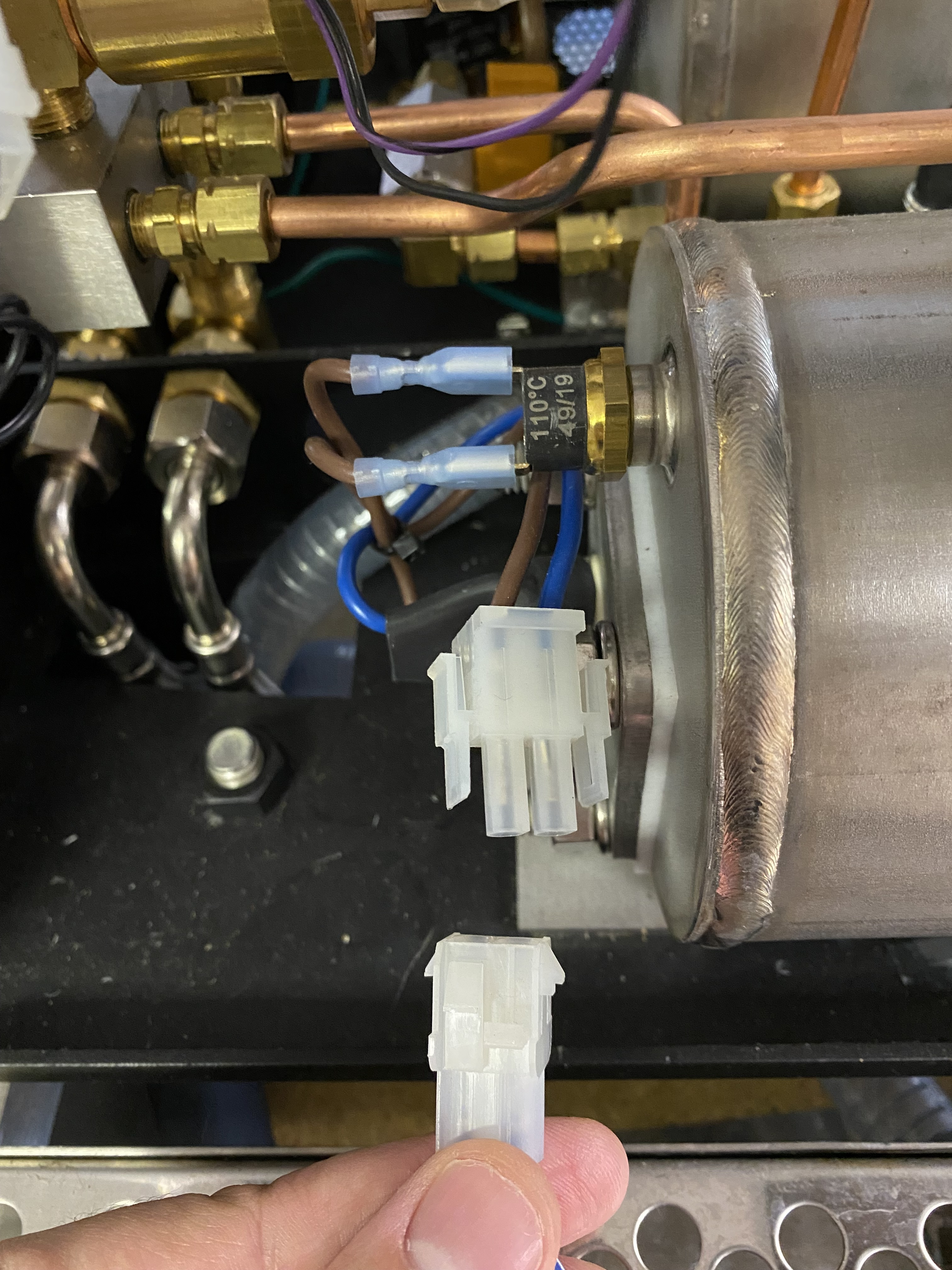

Step 3: Disconnect Molex connection to the heating element.

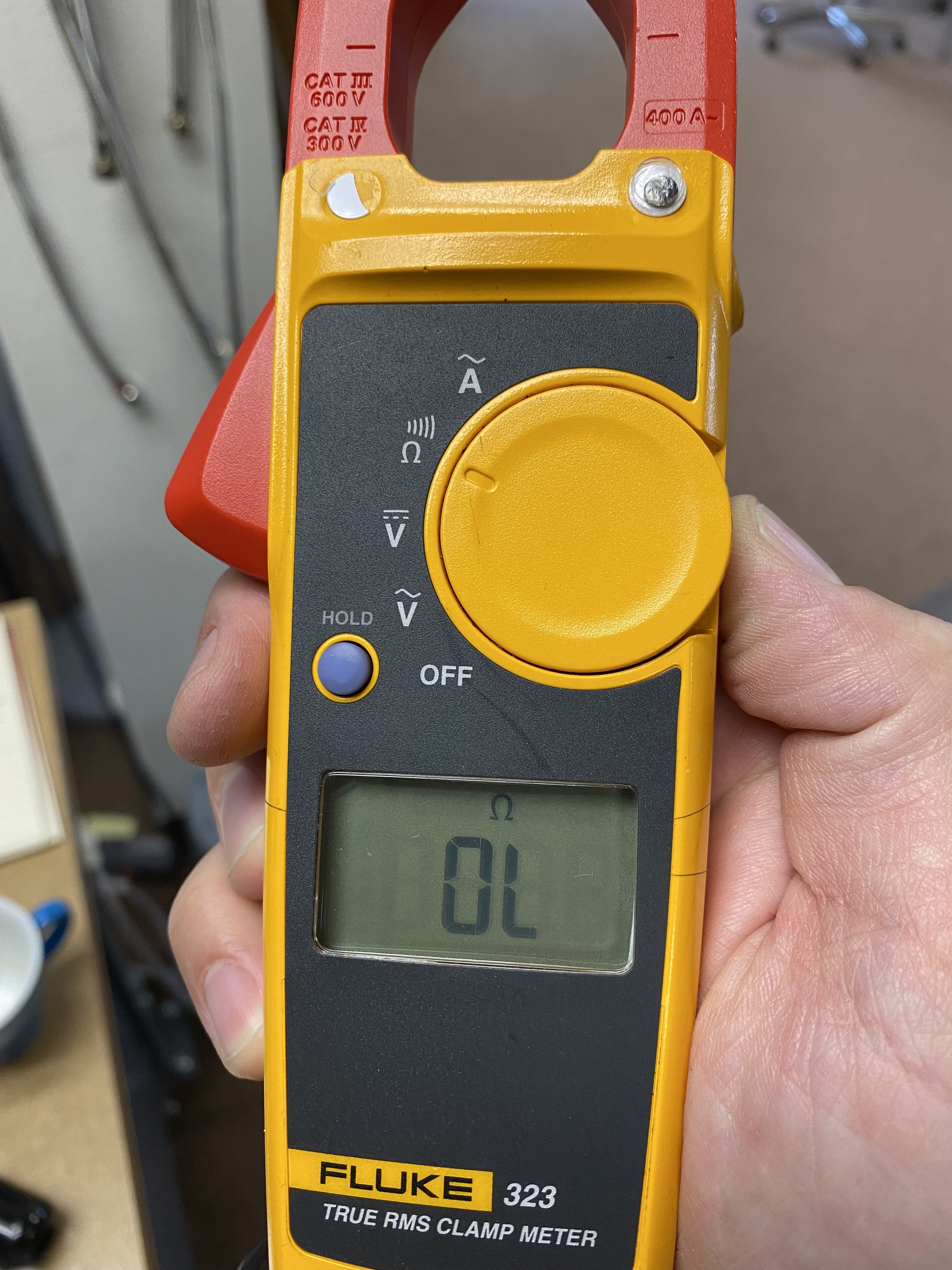

Step 4: Set multimeter to Ohms Ω

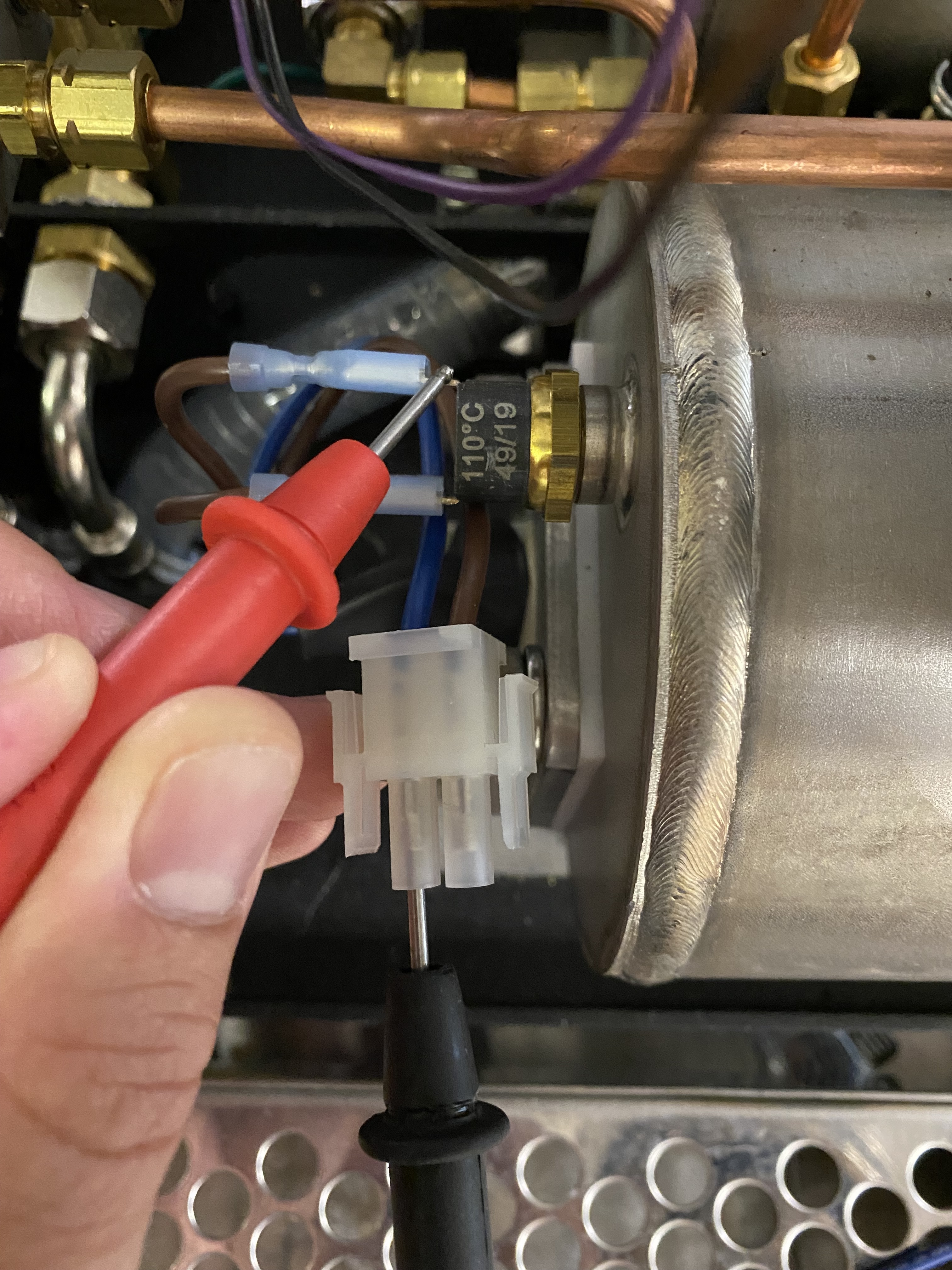

Step 5: Place one lead on each leg of the element. You should hear a continuous beep indicating continuity and have a reading of 81 Ohms. In this photograph I have my red lead on the end of the high limit that connects directly to the element.
If you have any questions or concerns, please contact support@slayerespresso.com
