Checking Steam Tank High Limit Single Group

Checking Steam Tank High Limit Single Group

Checking Steam Tank High Limit Single Group

Tools Needed: Multimeter, #2 screwdriver
Time Needed: 10 min

Turn off machine and unplug from power

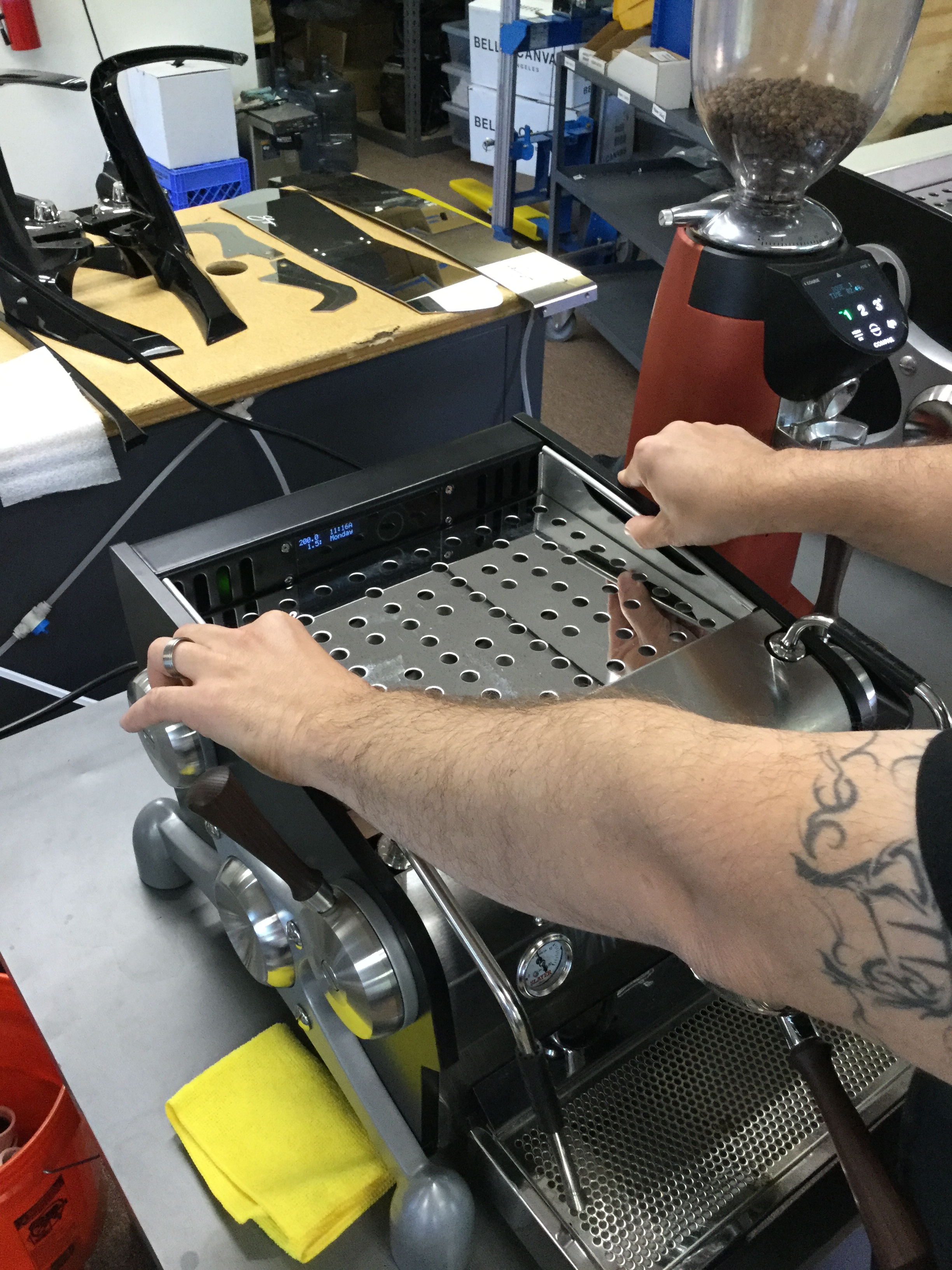

Remove cup tray

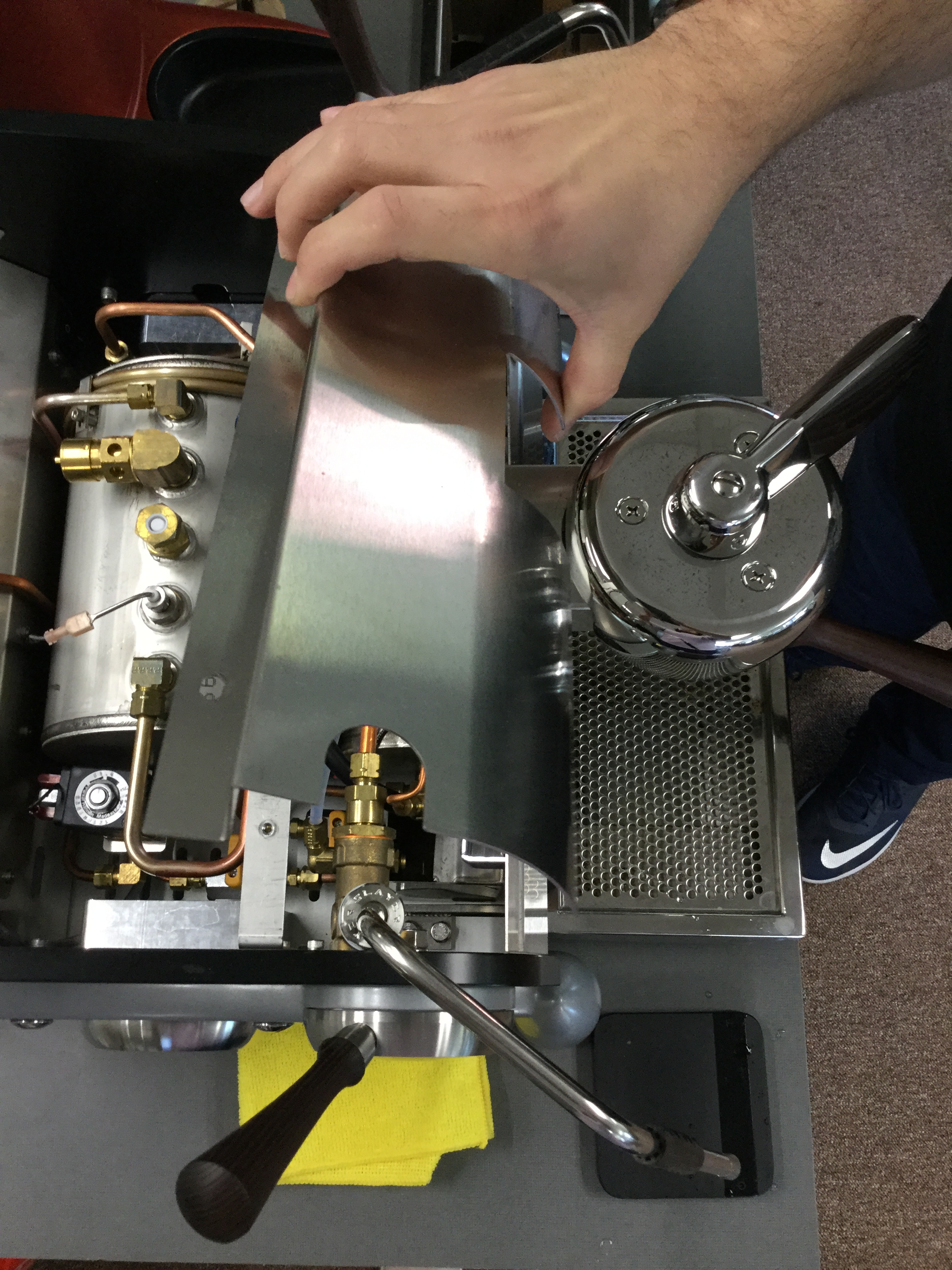

Remove front top panel

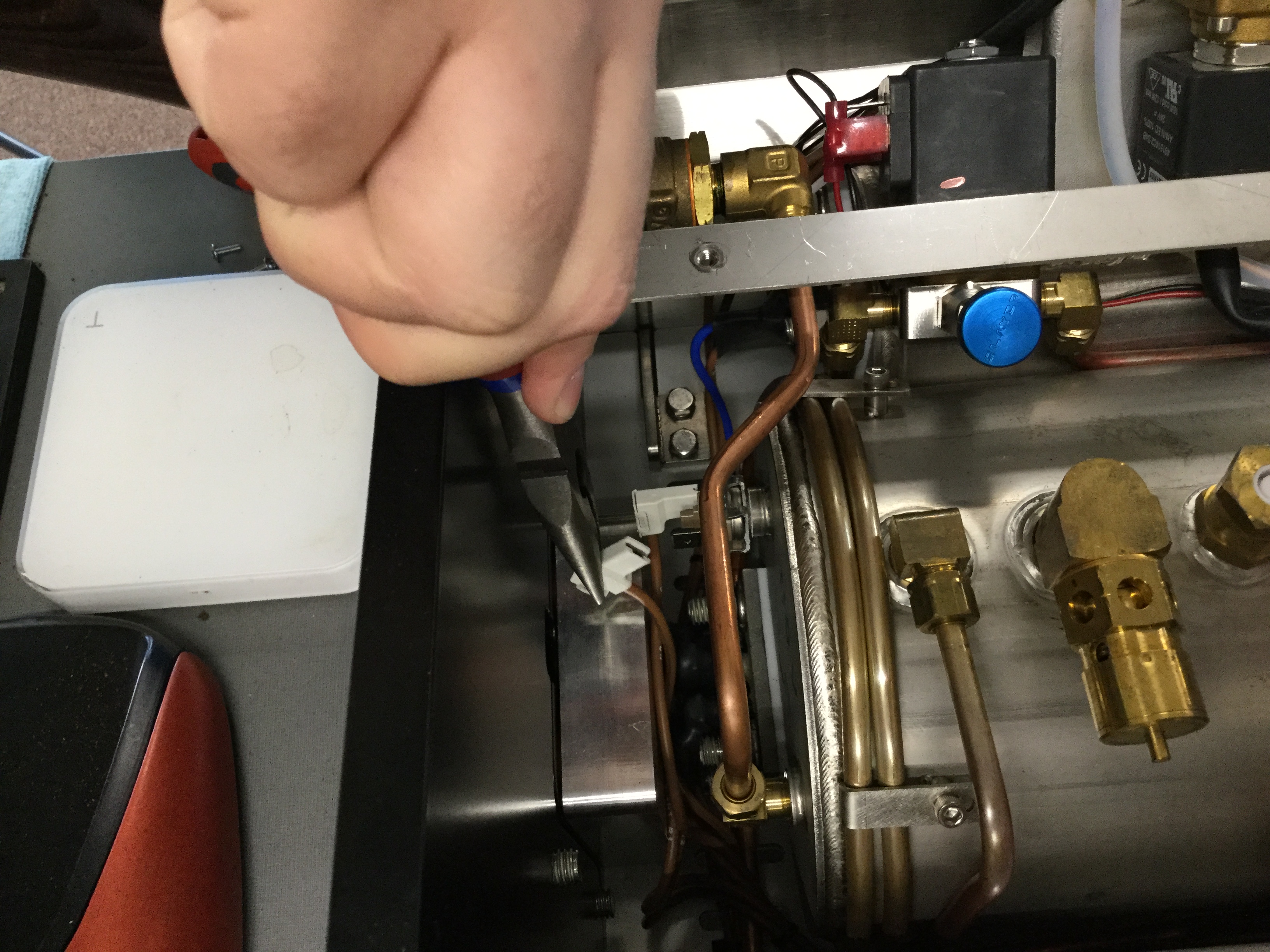

Remove leads to high limit

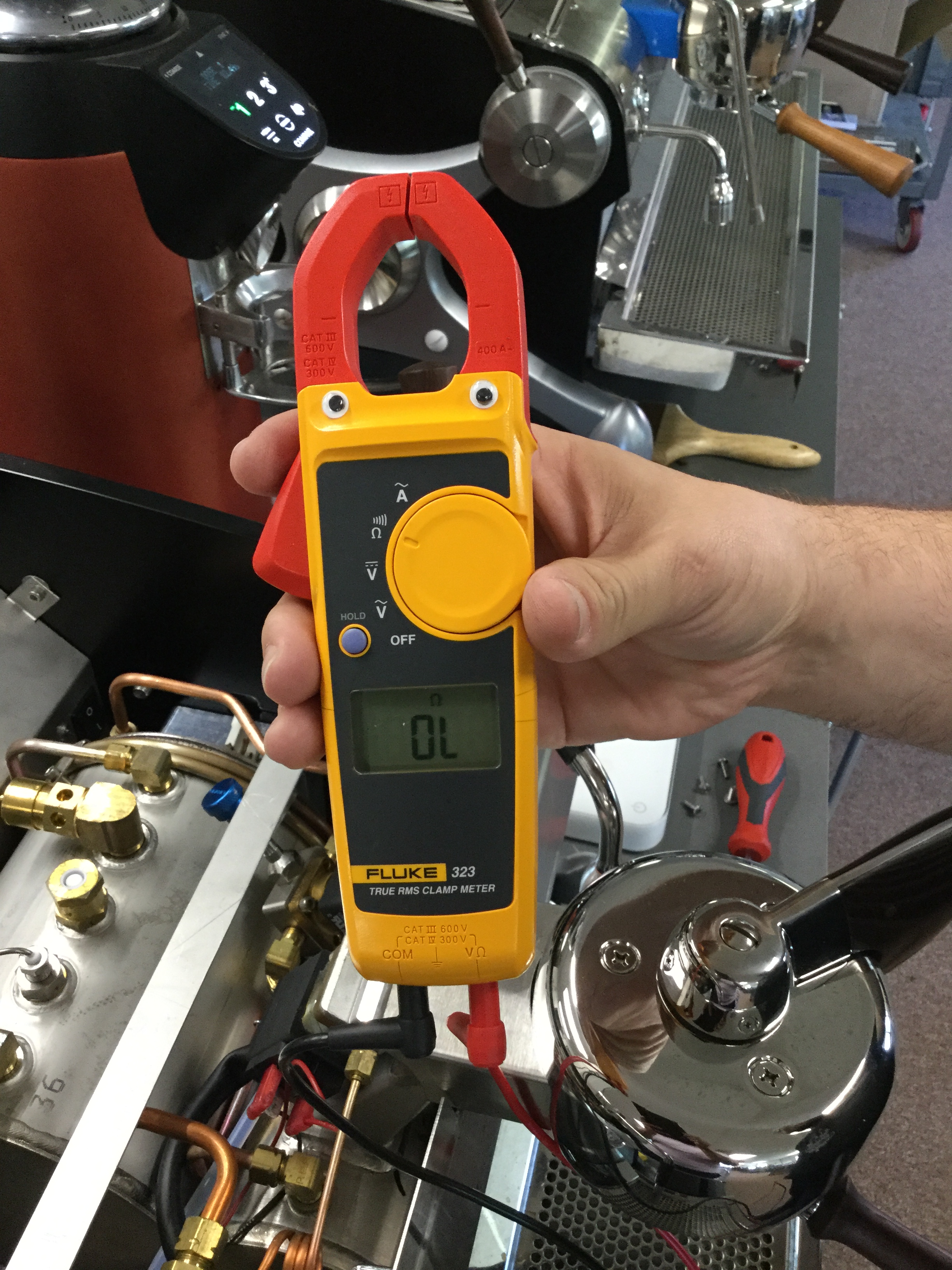

Check continuity between the poles

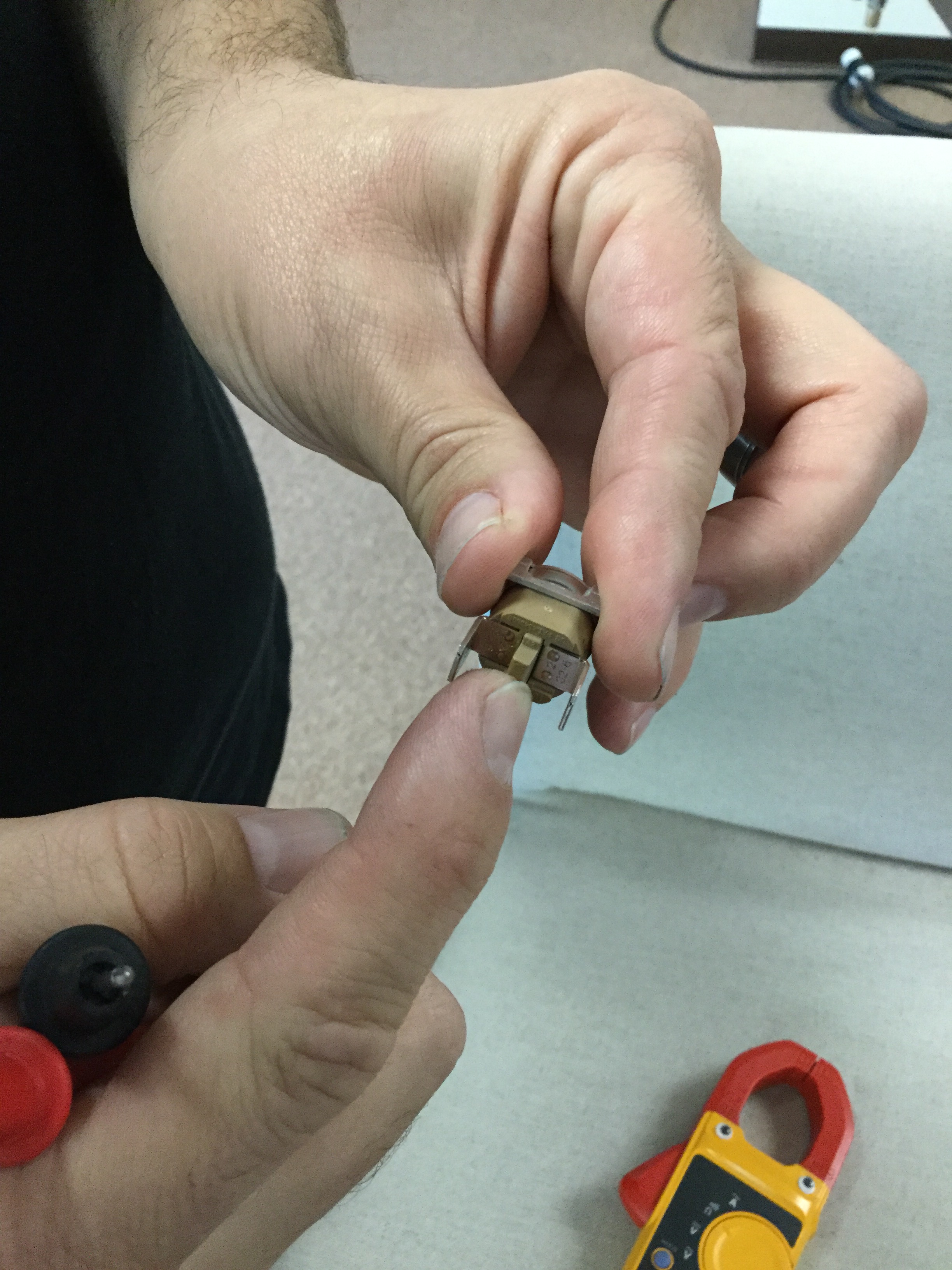

View of it outside the machine, you can see on the meter that there is a reading.


If no continuity, attempt pressing the button on the switch. If still no continuity replace the switch.
