Cleaning Drain Box, Single Group
Time Needed: 5-10 Minutes
Parts Needed: None
Tools Needed: #2 Phillips Screwdriver
Pick

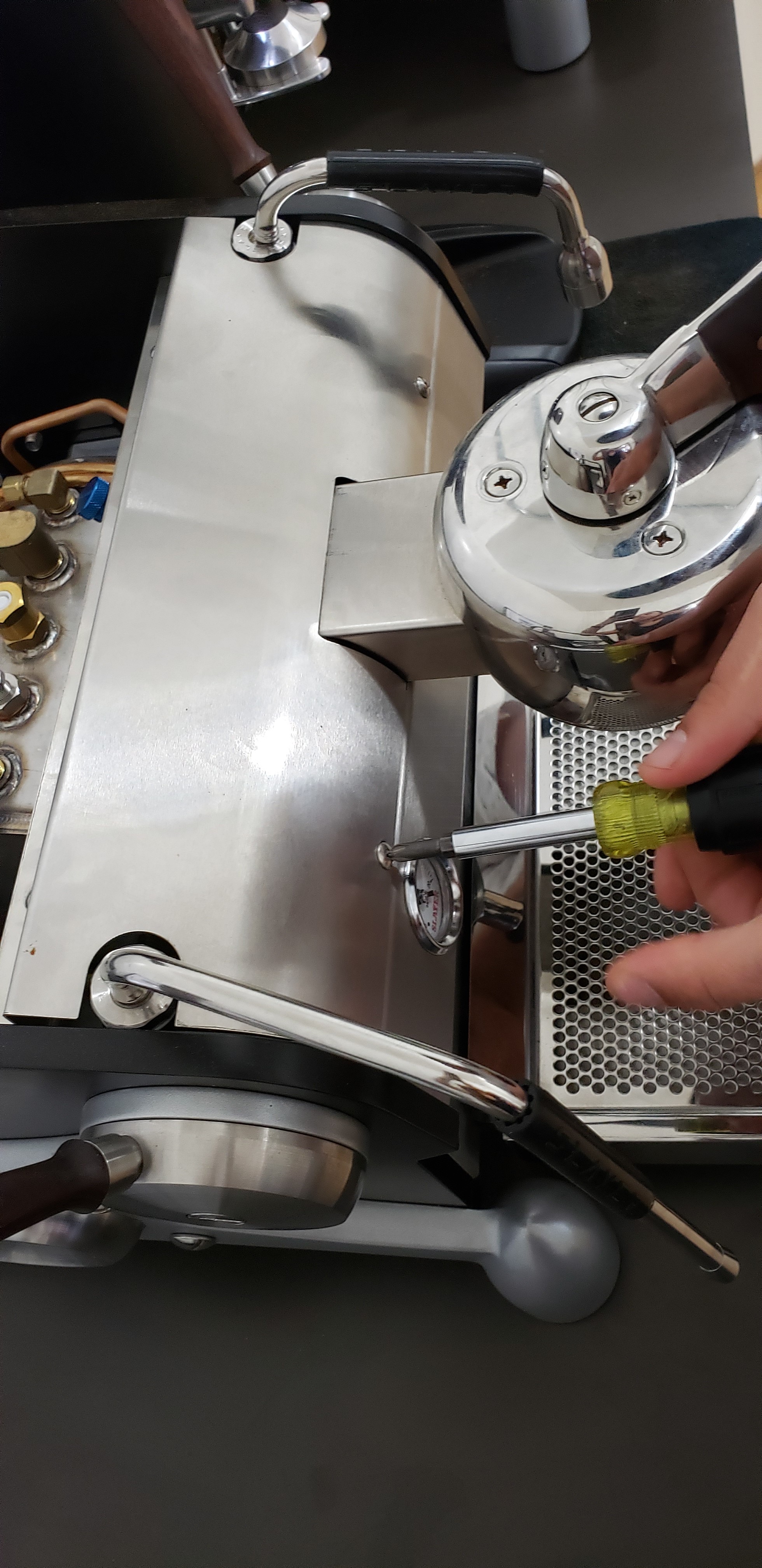

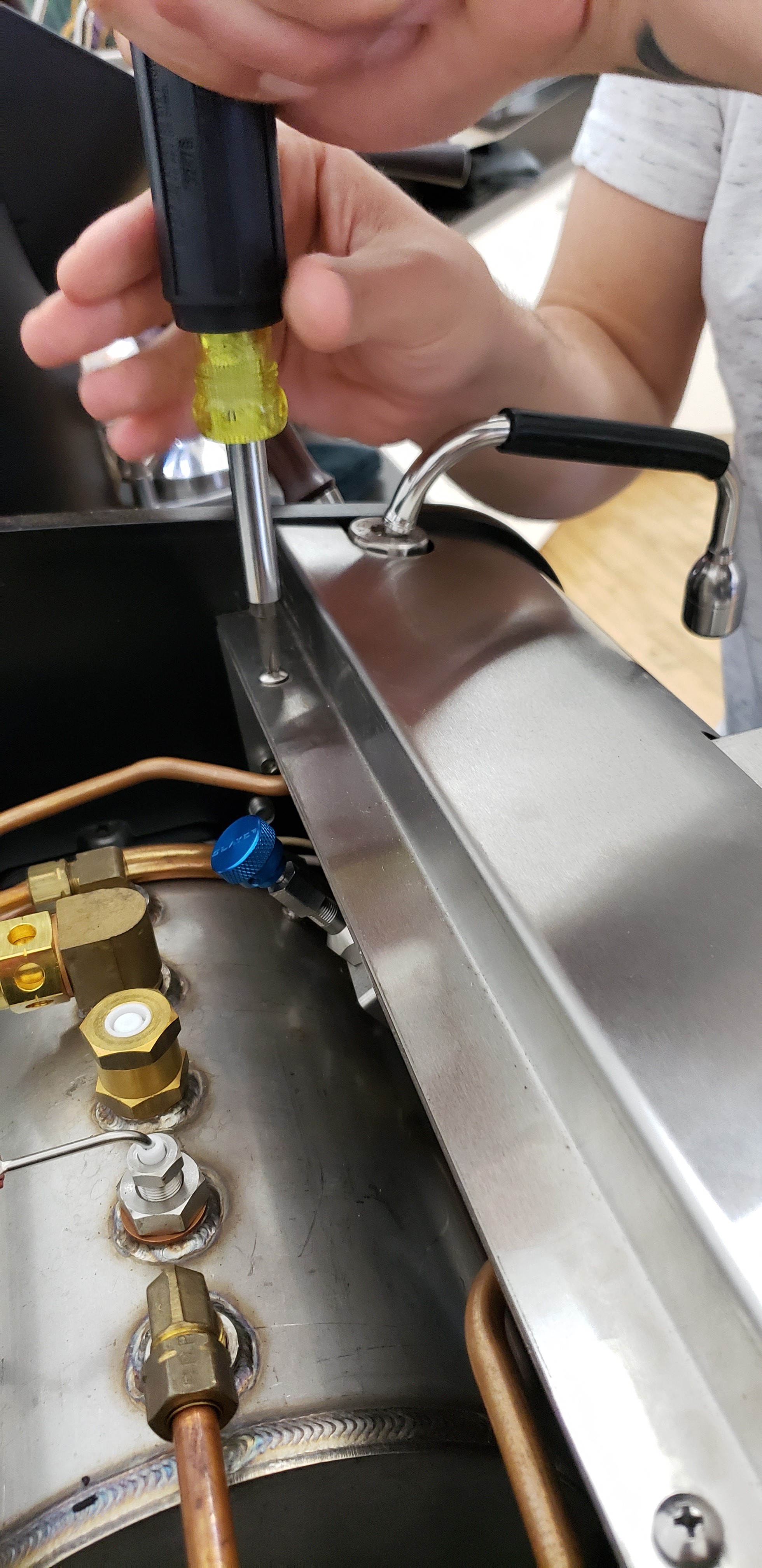

Step 1: Remove the cup tray cover and set aside. Remove top front panel by unscrewing 4 screws and set aside

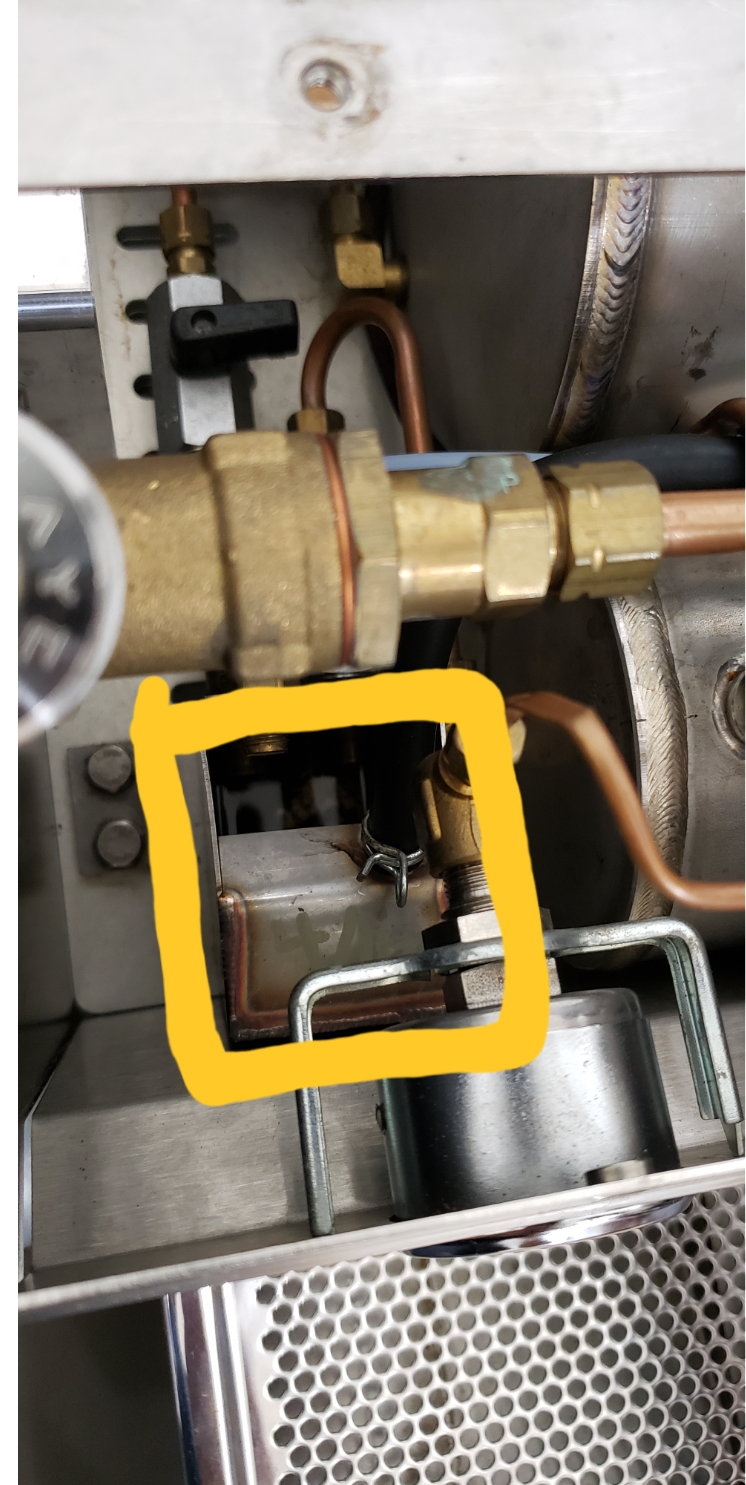

Step 2: Look into the drain box. If there is water in the drain box and not draining, the drain box is likely clogged

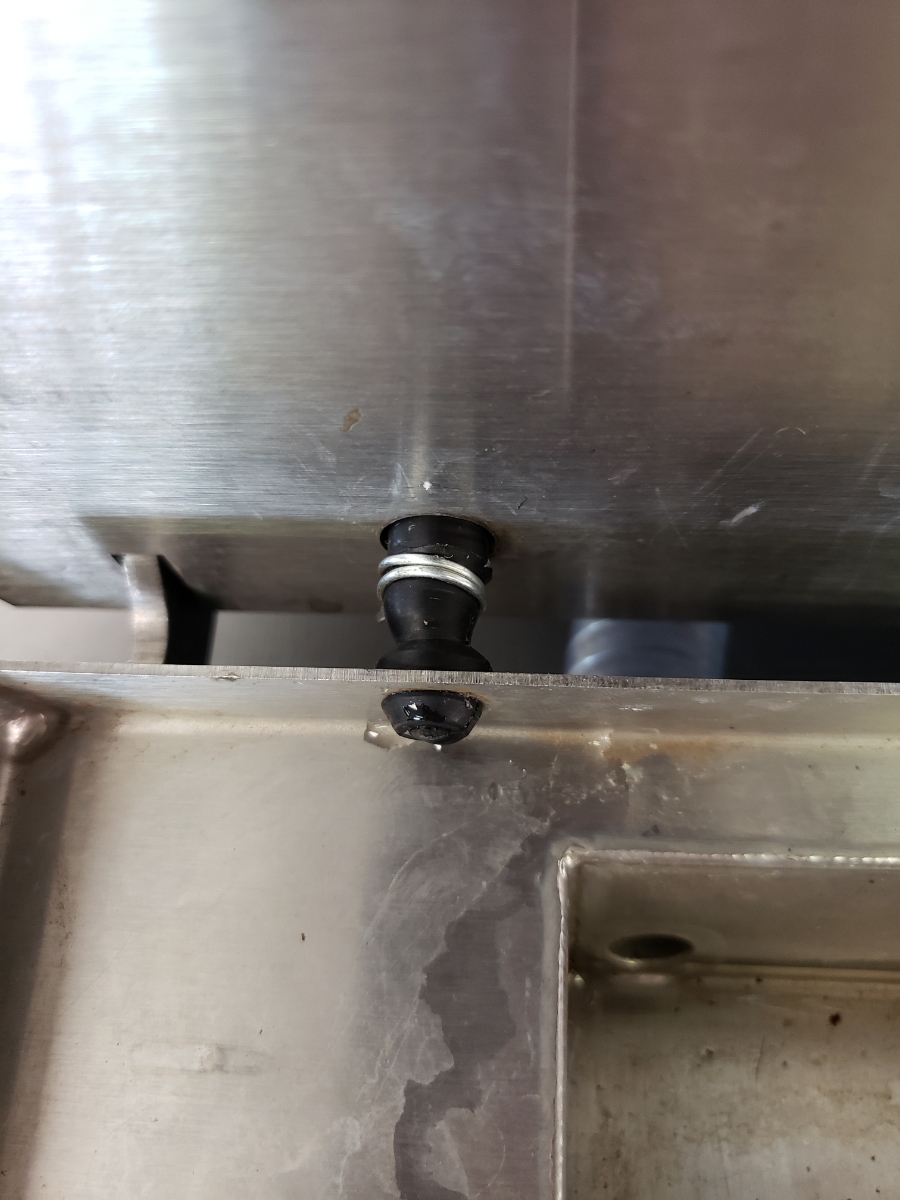

Step 3: Remove drip tray cover and look for the drain box tube. Insert a pick into the drain tube, careful not to break the tube.
If you have any questions or concerns, please contact support@slayerespresso.com
