Cleaning Flow Meter, Steam
What is a flow meter?
A flow meter is a component in the machine which,using magnets, records how much water has passed through and sends the information to the board. The board then takes the information given and displays the value in grams on the display.
Time Needed: 10-20 Minutes
Tools Needed: #2 Phillips Screwdriver
Cleaning the flow meters
Turn off the power to the machine by flipping the toggle switch below the machine
Turn off the water to the machine at the wall
Remove the cup tray panels, cup tray liner and set aside
Locate the flow meter, there will be one dedicated to each group
Once located, open the ball valve to the left of the flow meter. This ball valve will drain the flow meter once the flow meter is open and the vacuum is broken

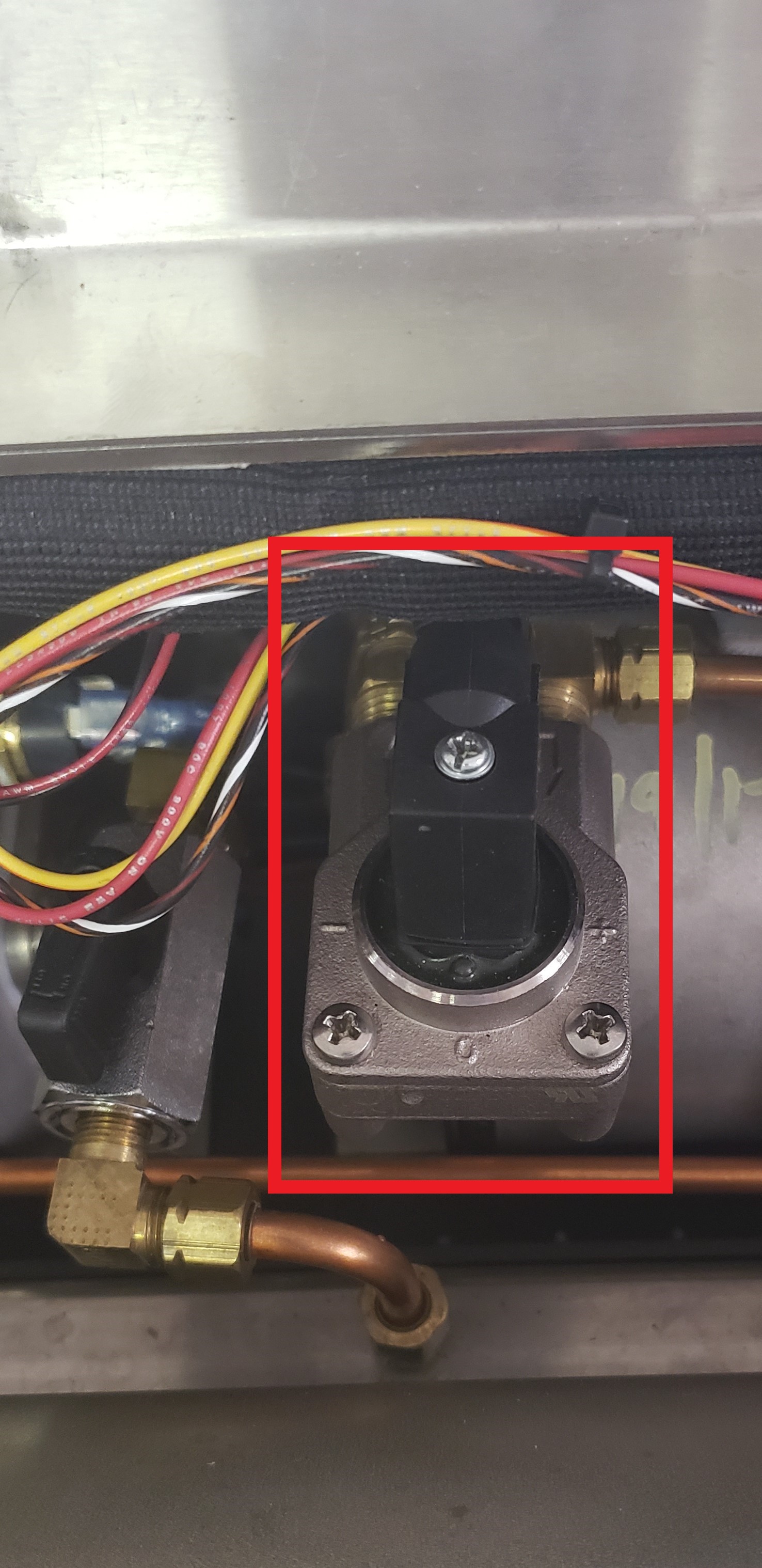

Remove the plug from the flow meter by unscrewing the Phillips screw holding it in

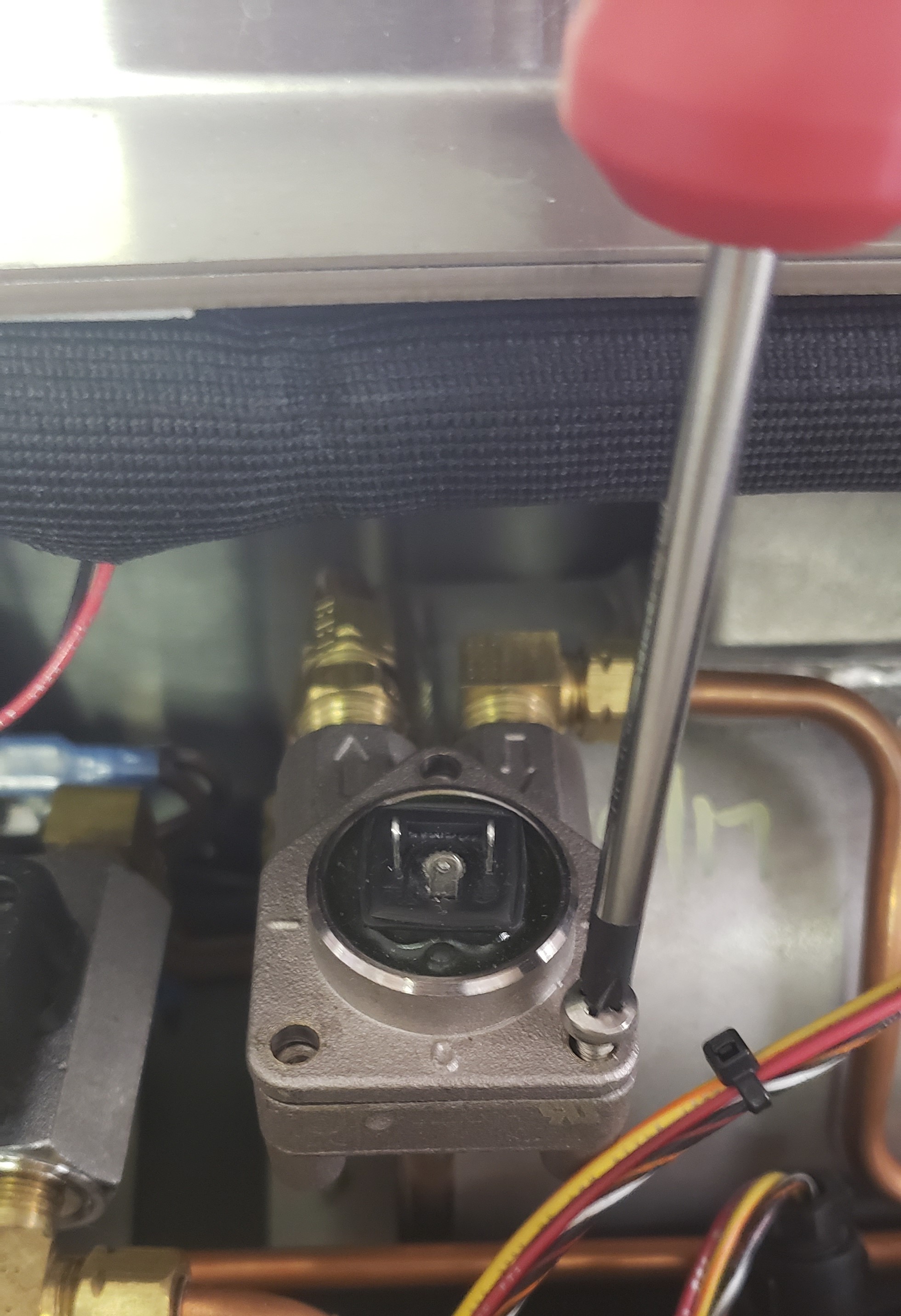

Unscrew the 3 screws holding the top plate of the flow meter

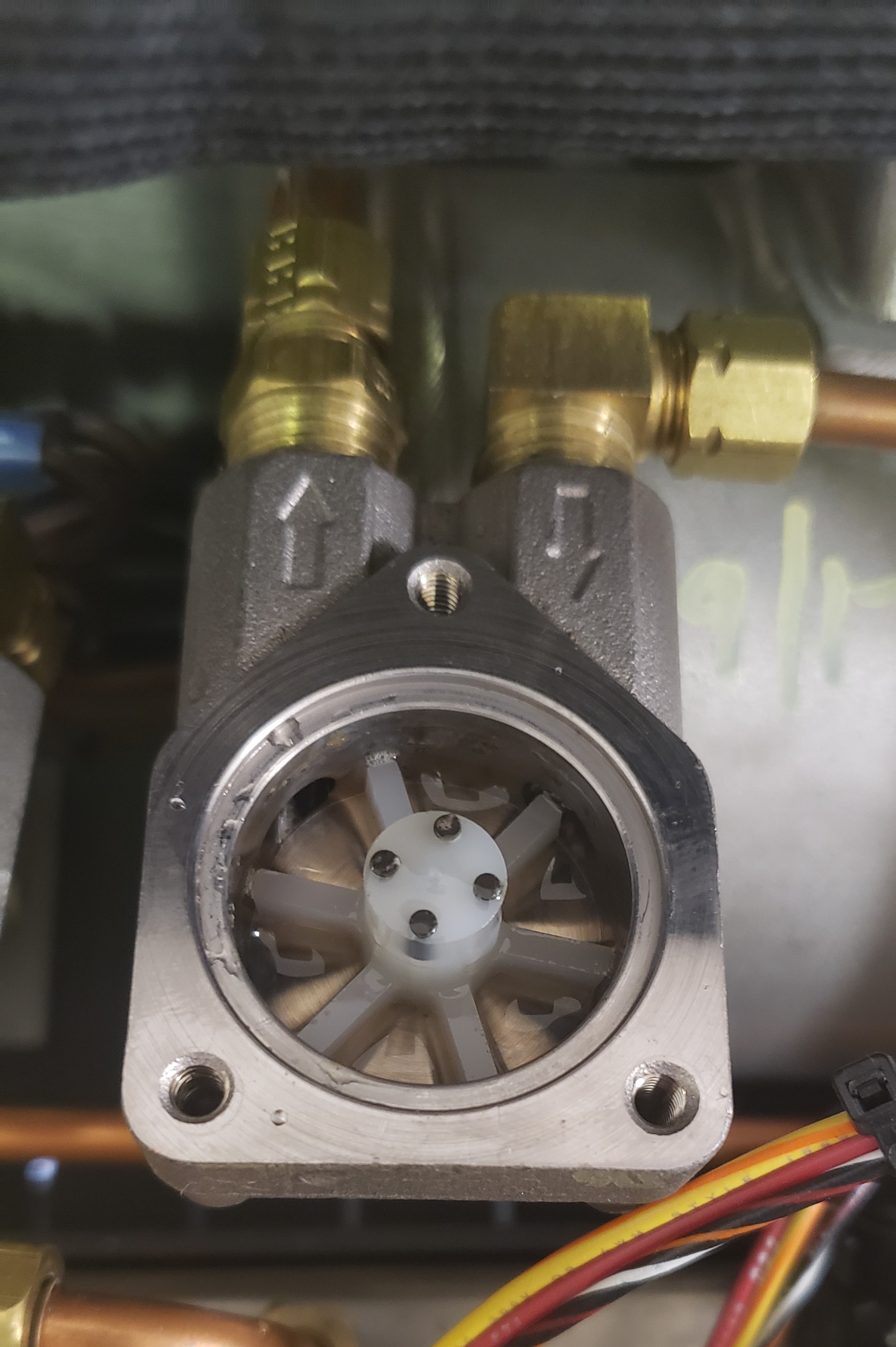

Once the top plate of the flow meter is removed, the rotating wheel and internals of the flow meter will be exposed
Remove the wheel and clean the internal space and wheel with a clean towel
Reassemble the flow meter, making sure the screws are tighten well
Close the ball valve and turn on the water to the machine
Verify there are no leaks and reassemble the cup tray
