Convert Old 24v Power Supply to New 24v 500 Watt Cosel, V3
Convert Old 24v Power Supply to New 24v 500 Watt Cosel
Cut off the red and black wire connector, remove the board.

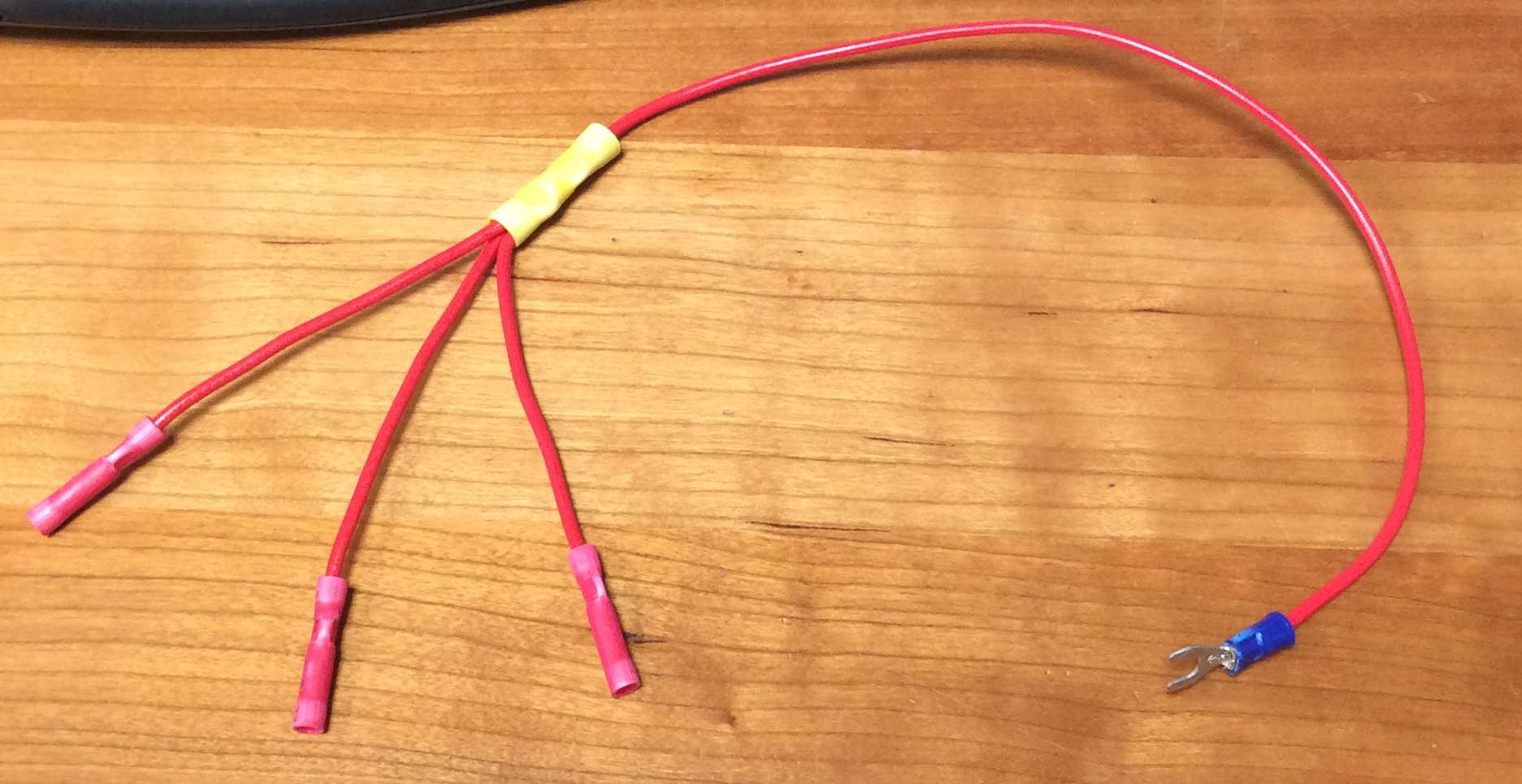

Butt splice the three red wires to one tail with a ring terminal

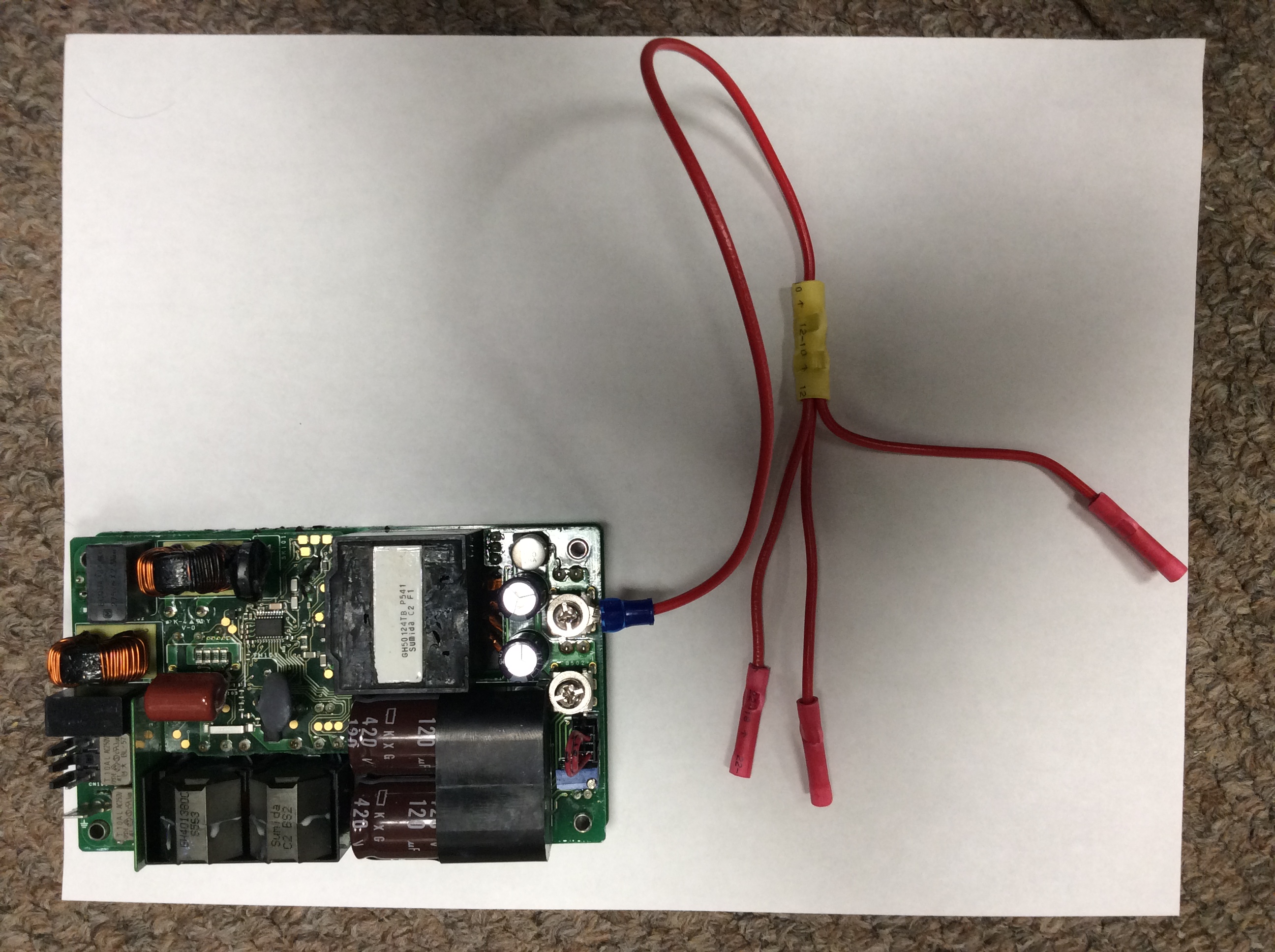

Connect the new tail to the new power supply and mount to the board using one of the screw holes.
