Replacement of RTD, Espresso Line

Replacement of RTD, Espresso Line

Replacement of RTD Espresso Line

Tools Needed: Philips Screwdriver, 12mm Wrench, Teflon Tape

Time Needed: 30min

Shut off water

Turn off power

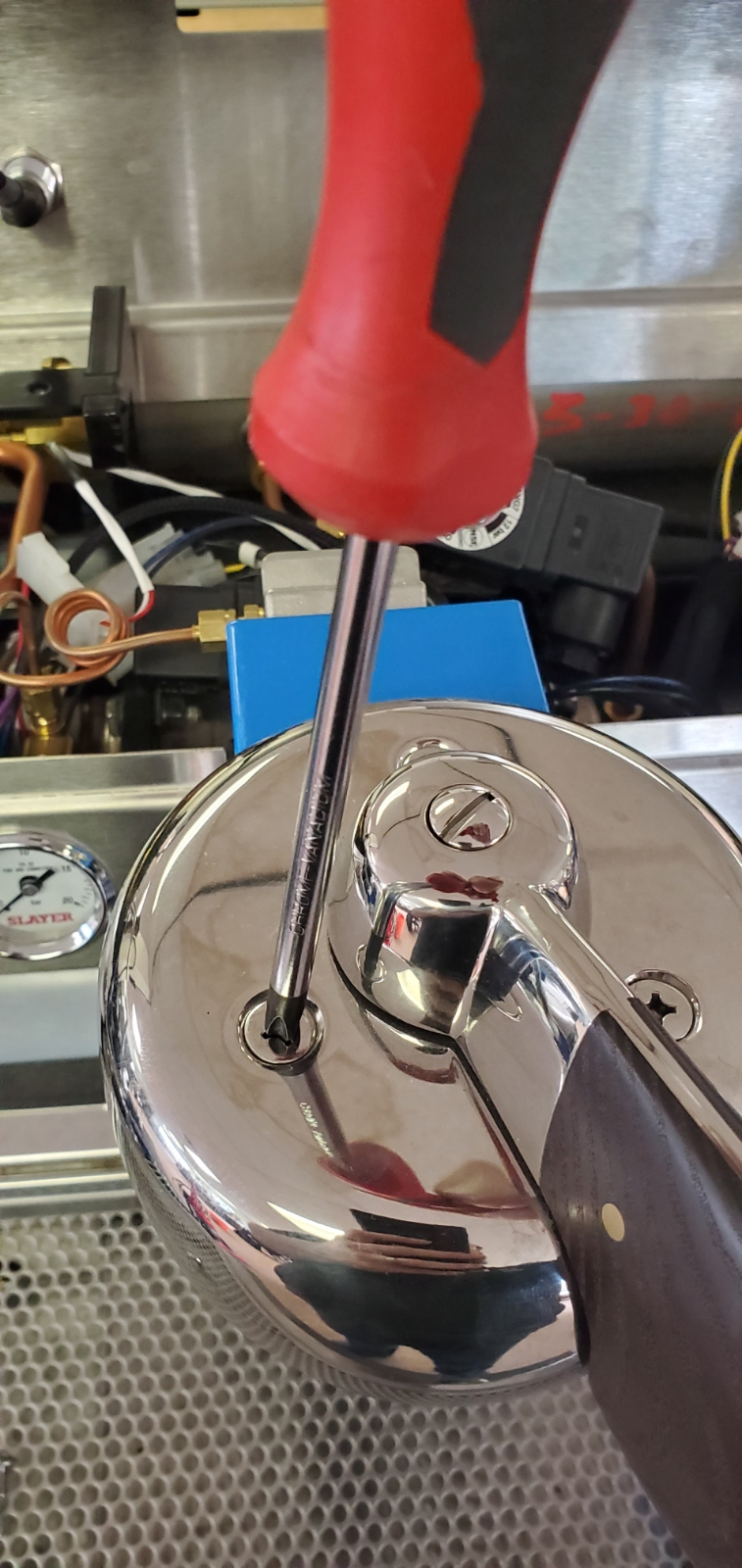

Remove screws on group cover


Remove Group Cover

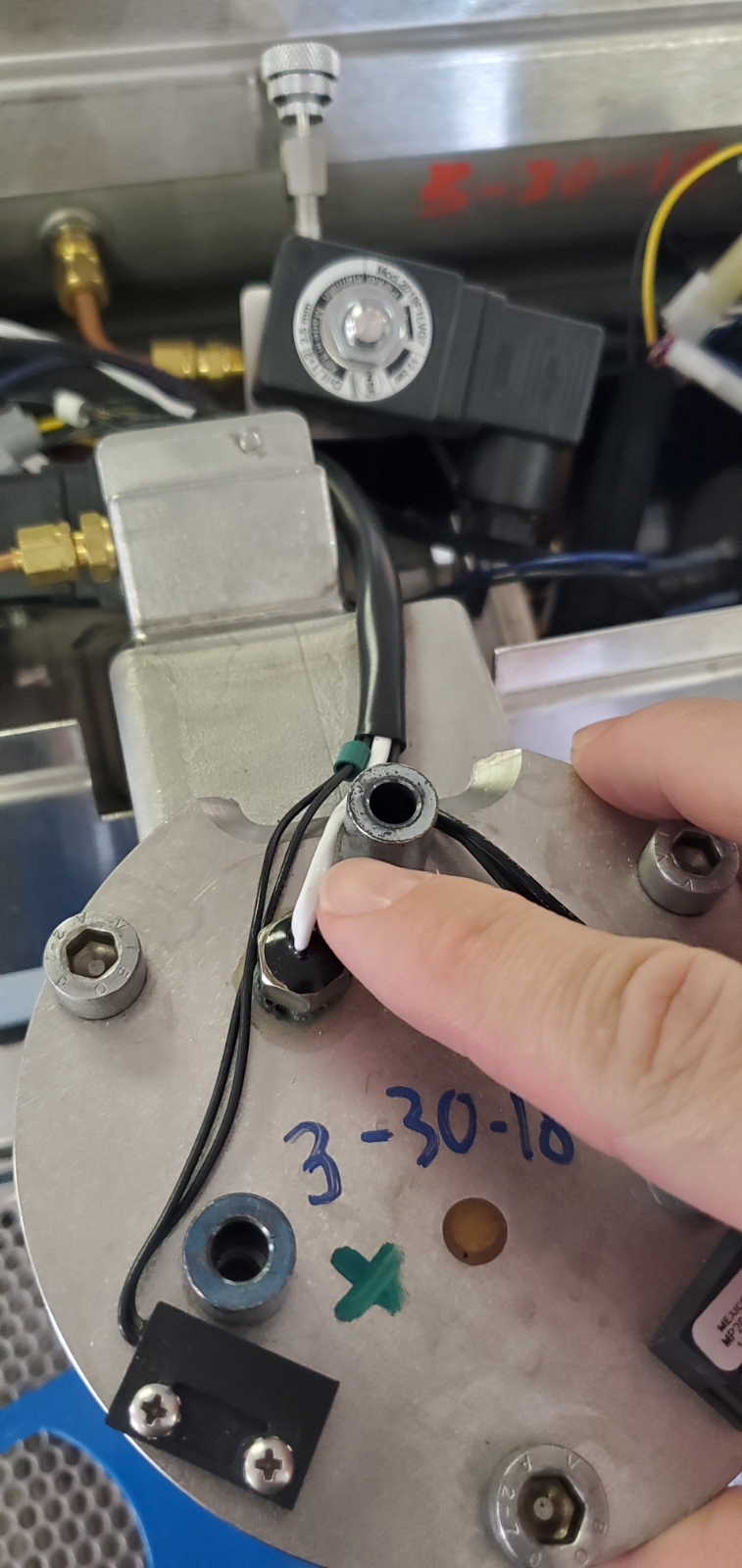

The RTD has the white wire running off of it

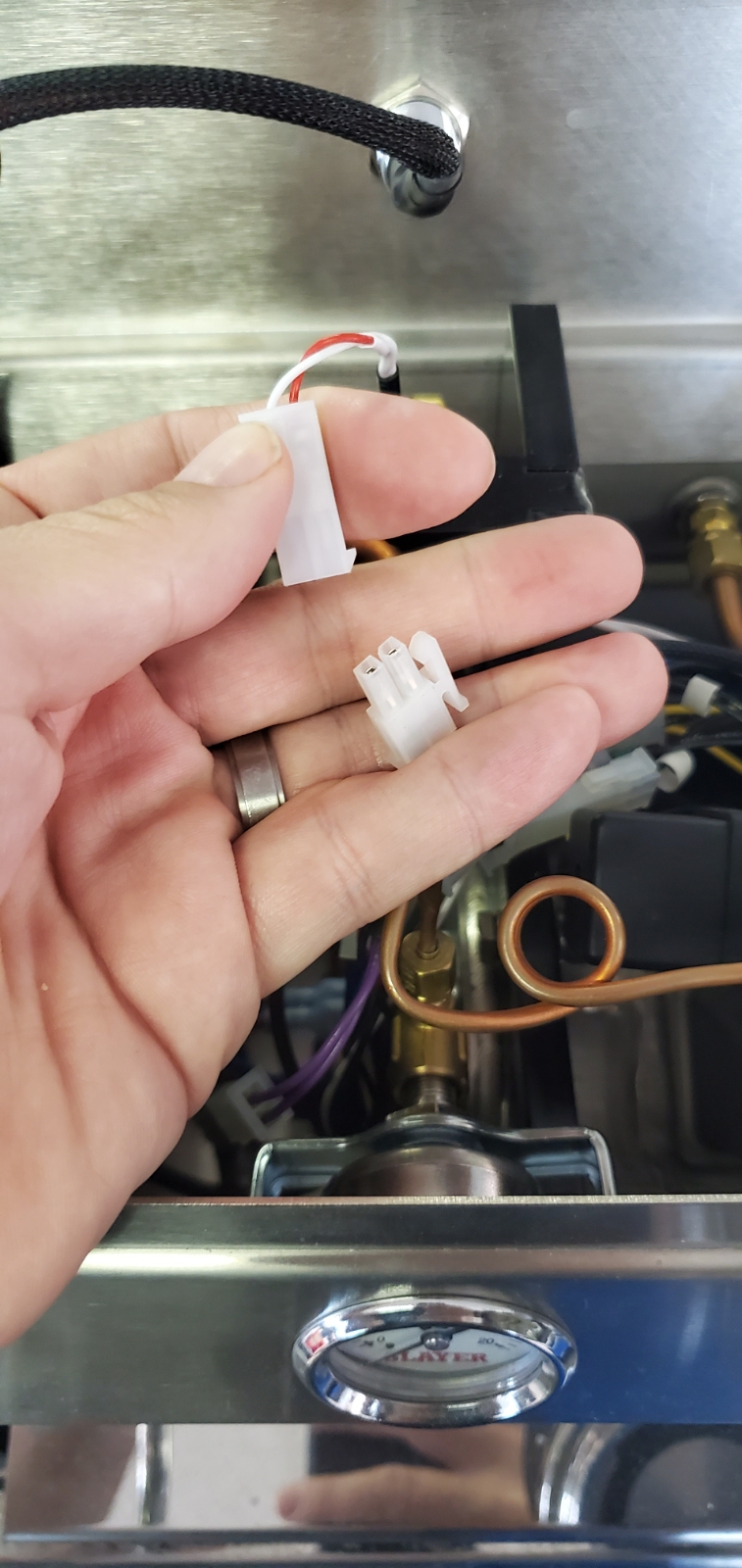

Follow the white wire and disconnect the molex

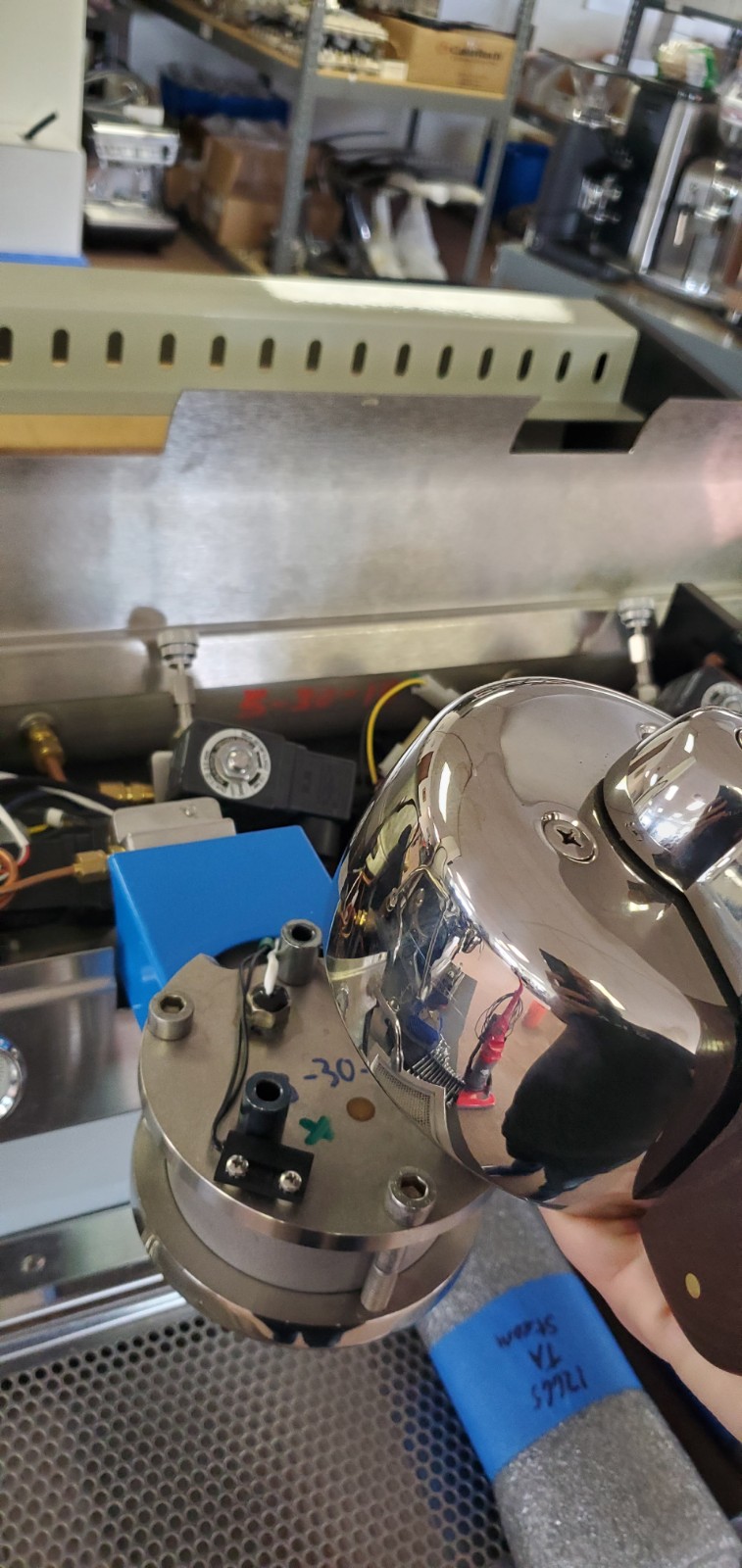

Remove the group neck cover

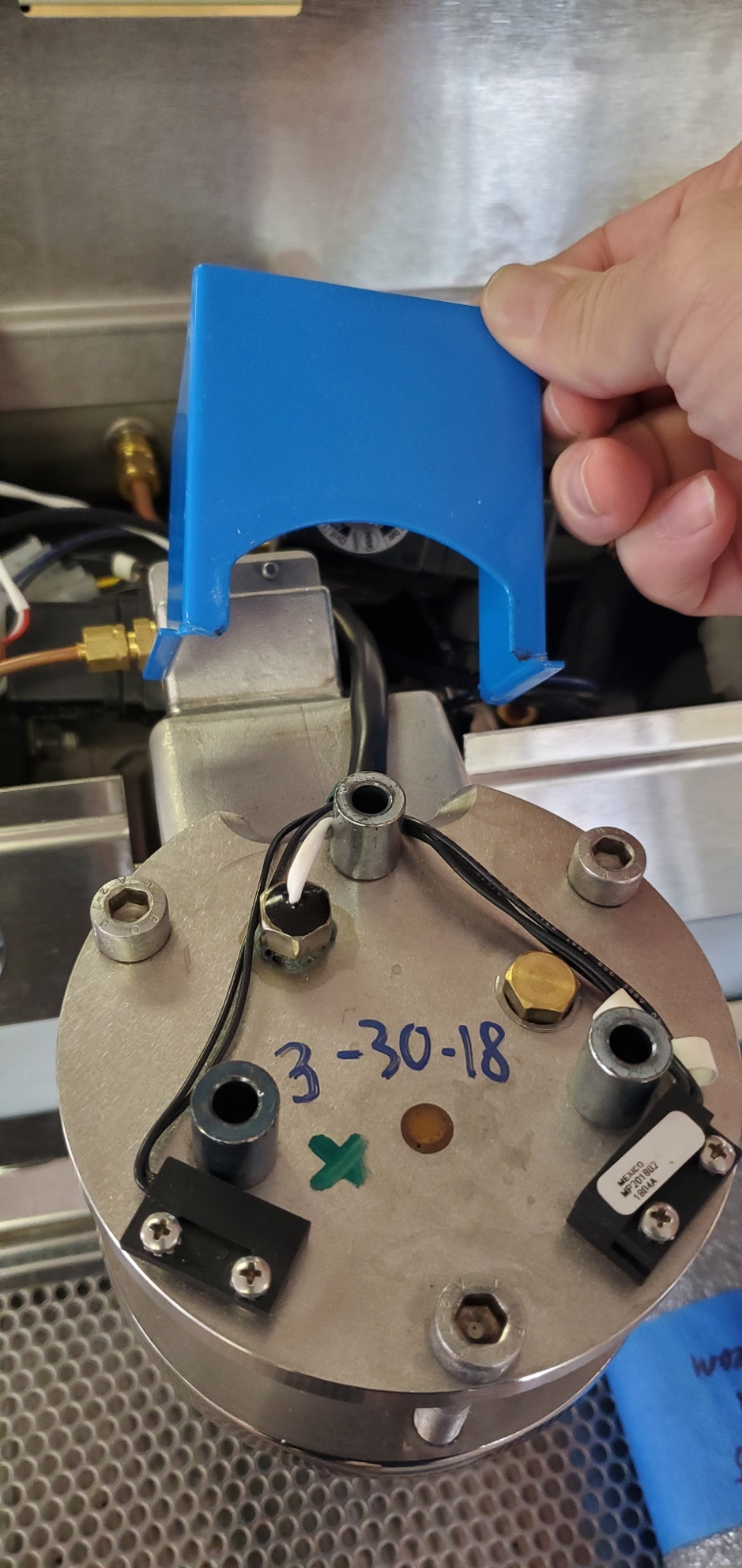

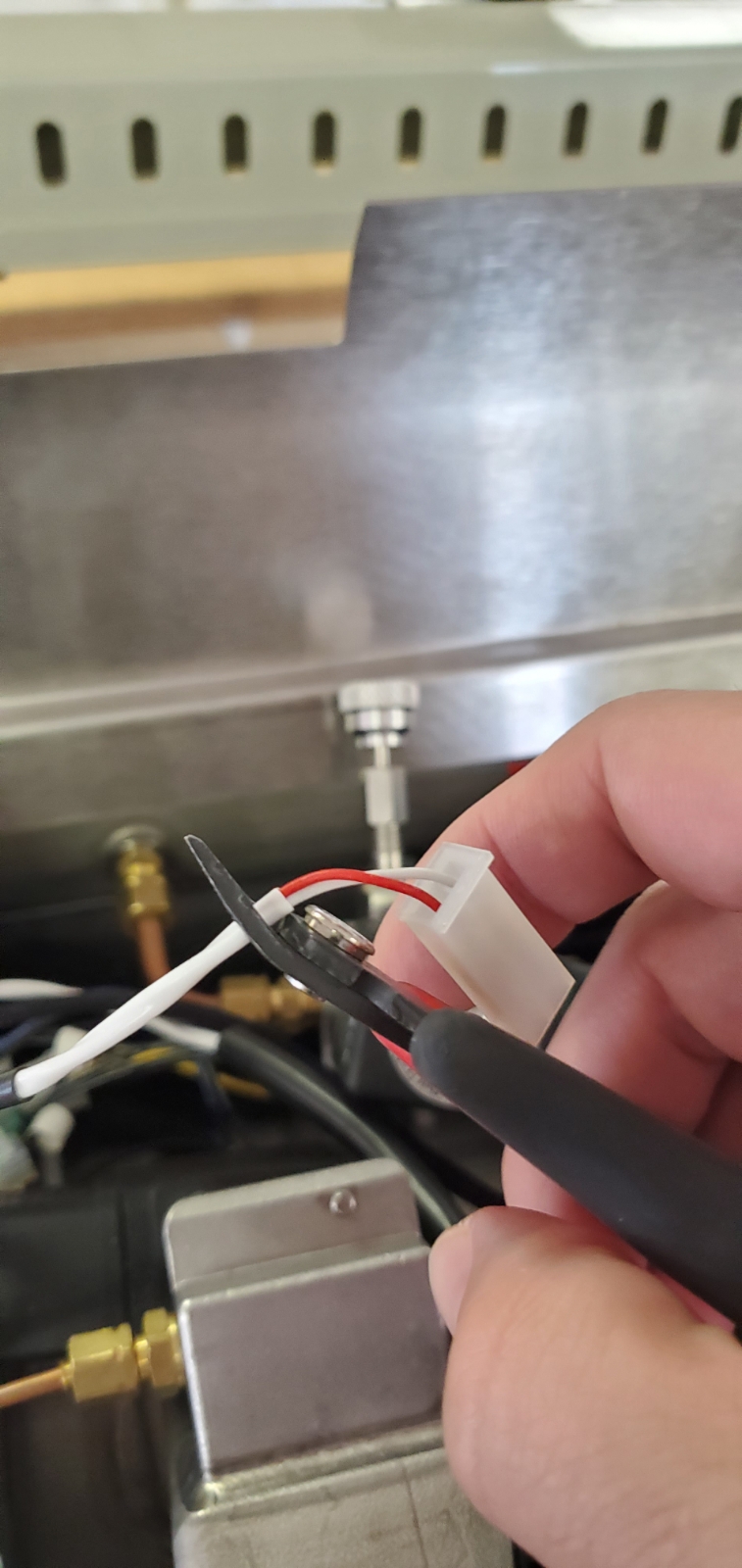

Clip off the molex and pull the wire through the shroud

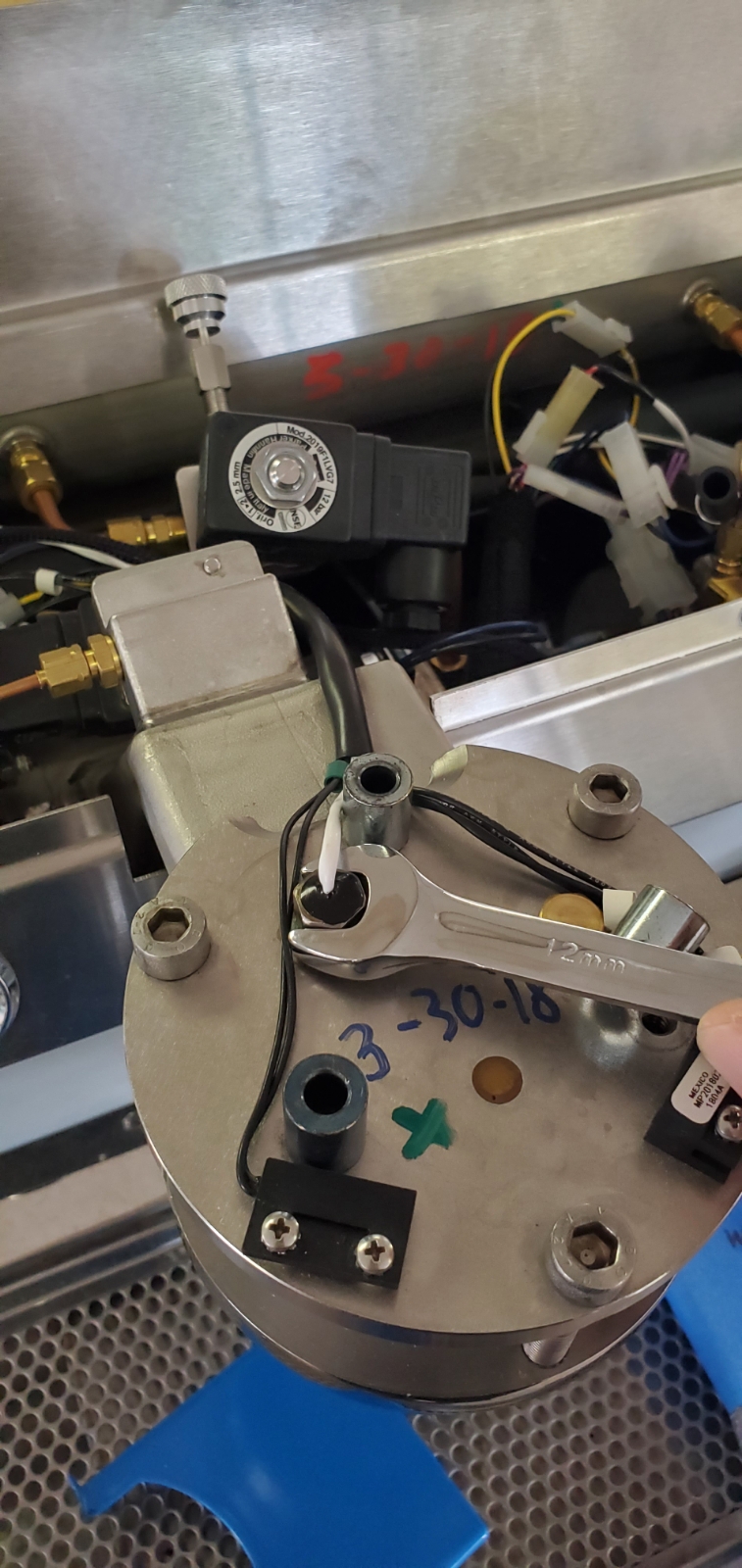

With a 12mm wrench remove the RTD from the group head.

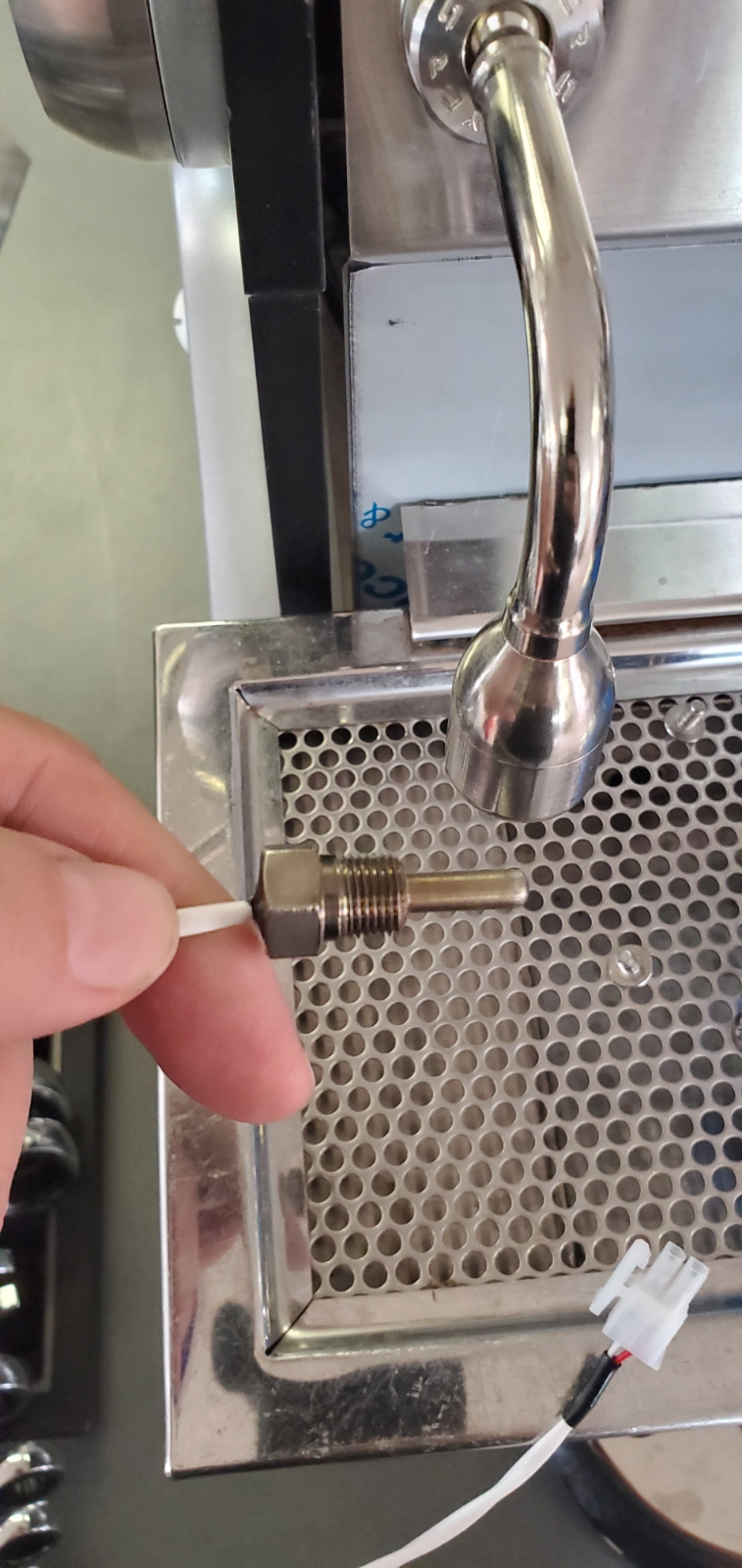

Install the new RTD

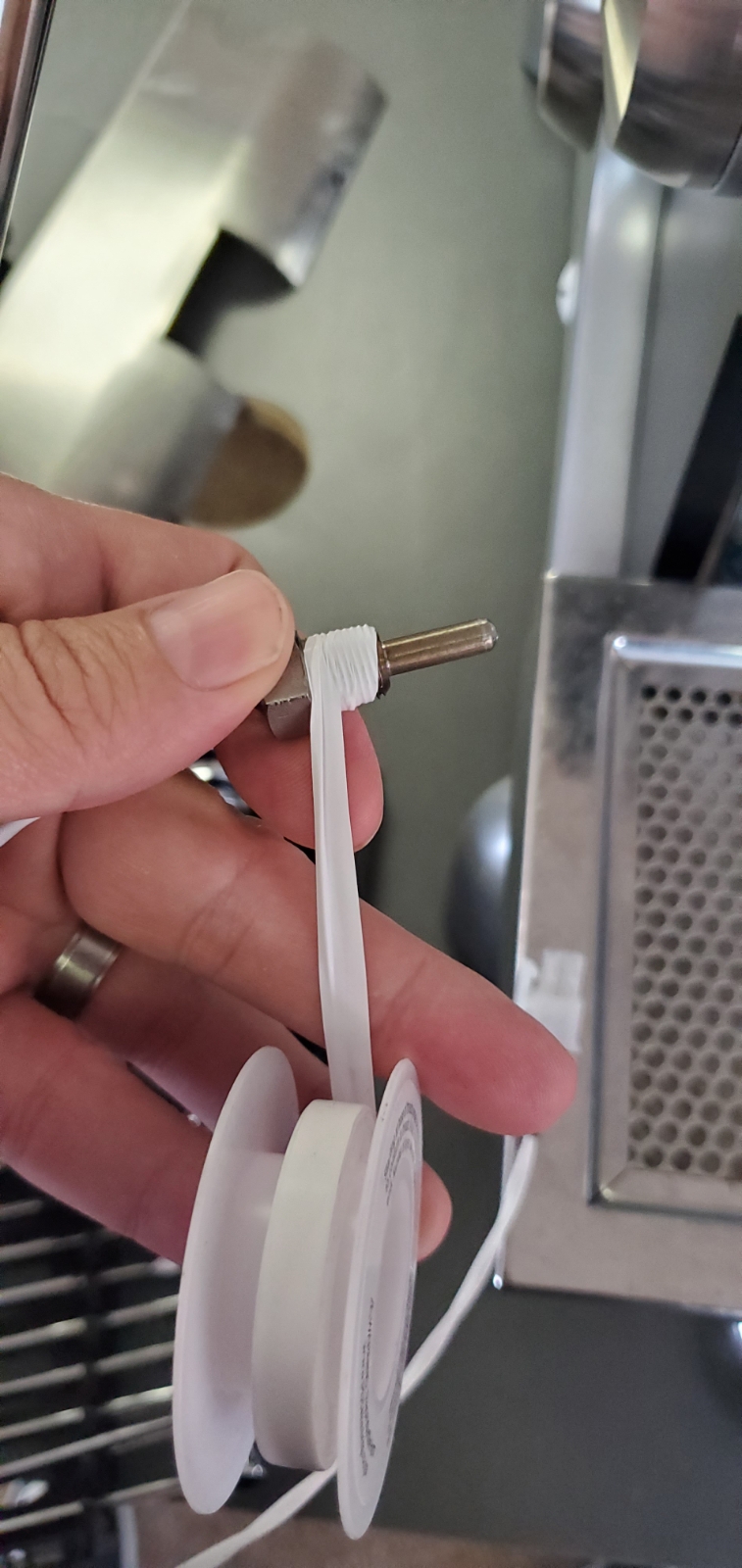

Wrap 3 wraps of teflon tape on the threads


Insert into the group head and tighten until snug

Turn on the water to the machine

Inspect for leaks

Plug into Molex

Replace group cover

Test for operation
