Steam Valve & Wand Rebuild - Espresso Series (Video)

Steam Valve & Wand Rebuild - Espresso Series (Video)


Espresso Series DVG Valve & Wand Rebuild


AlertSLAYER recommends all service be performed by an experienced SLAYER Espresso trained technician. For a technician reference near you, please contact SLAYER Support at (206)-284-7171 (#1 in Directory) or email support@slayerespresso.com.

Click the link below to watch a video on performing preventative maintenance on the steam valve and wand assembly?

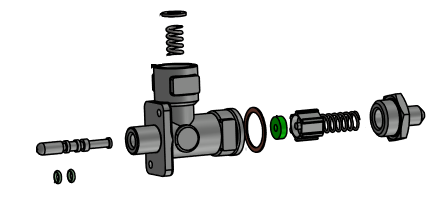

Parts Needed:
  1. 46900-10010 Steam Valve Rebuild Kit (spring, crush washer, plunger w/ gasket)
  2. 46005-53110 Steam Seal, Peek Plastic
  3. 46005-53060 Bushing, 15 X 10.5mm Peek Plastic
  4. 46000-53050 O-Ring for Peek Steam Valve Bushing
  5. 46000-53090 O-Ring for Brass Steam Valve Pin
  6. 46000-53070 Gasket for Steam Valve Brew Actuator, 27mm, Teflon
  7. 6000-50030 O-Ring for Steam Tip, 1.5 x 6


Questions or concerns? Please contact support@slayerespresso.com
