Hard Reset - Single Group
Hard Reset, Single Group Step 1: Press circle to enter programming Scroll to Advanced Settings and circle to enter Scroll to menu option Save/Restore settings, press circle to enter Arrow up to Reset Factory Default Press circle, arrow to yes, press ...
Setting Rotary Pump on Single Group (January 2020 or later)

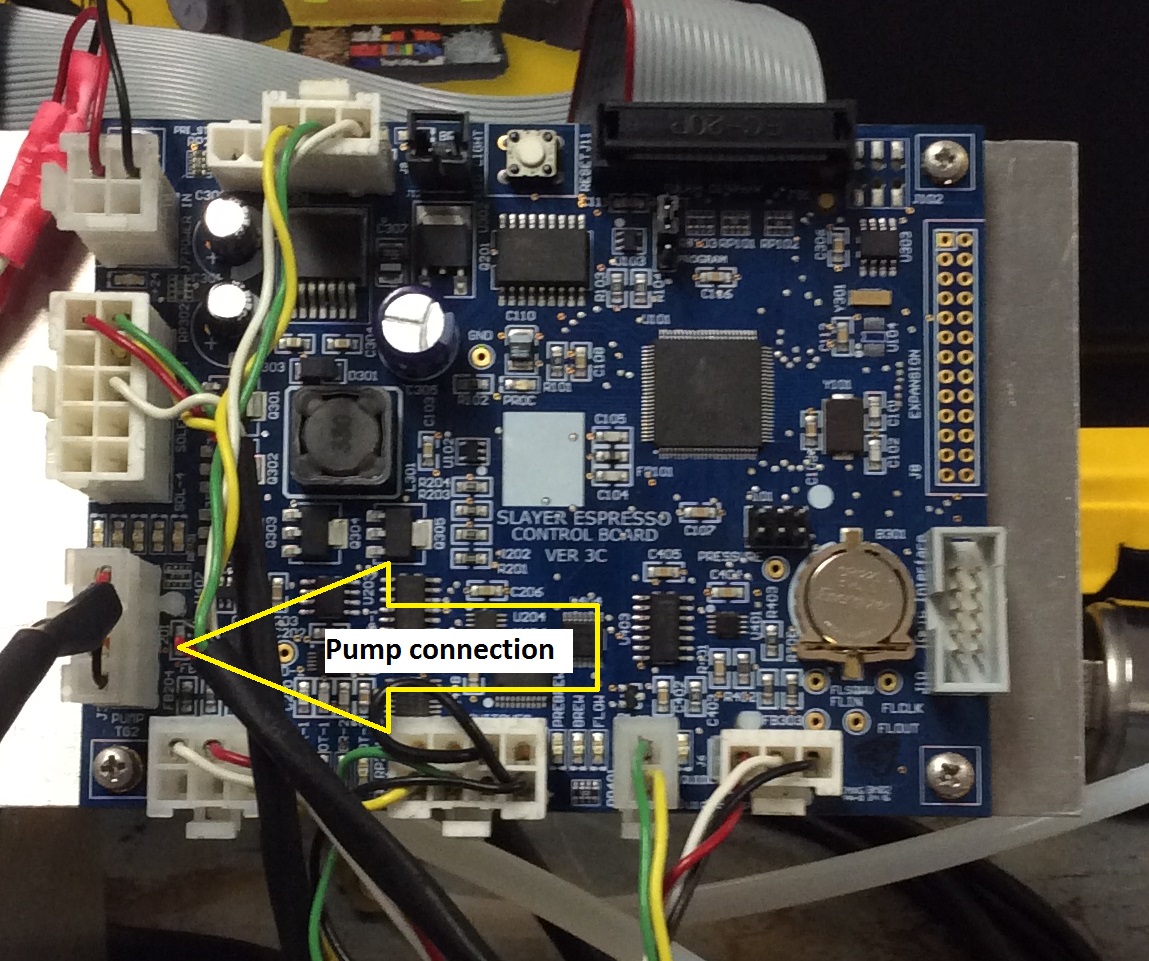

Setting Rotary Pump on Single Group (January 2020 or later) Tools Needed: Flathead screwdriver, Phillips head screw driver, or multi screwdriver (photo) Time Needed: 10 Min Press circle to enter into programming Scroll to pump percentage, confirm the ...
Testing No Power, Single Group
Testing No Power, Single Group Time Needed: 10 Minutes Parts Needed: None Tools Needed: #2 Phillips Screwdriver Multi Meter Circuit Board Reference #1 - Main power - 24v DC from power supply #2 - Relay #3 - Display ribbon cable #4 - Transducer #5 - ...
Single Group Electronics Identification Diagram
2020 Single Group 1. Display Ribbon Cable 7. Group Cap Magnet Switches 2. Relay Harness 8. Steam Tank Level Probe 3. 24v DC Power 9. Transducer 4. Pump 10. SSR Steam Relay 1 5. Solenoids 11. SSR Steam Relay 2 6. Brew Tank RTD 12. SSR Brew Relay If ...
Single Group (Classic) Electronics Identification Diagram
Single Group Classic Electronics Diagram Slayer Single Groups manufactured before January 2020. 1. Display Ribbon Cable 7. Group Cap Magnet Switches 2. Relay Harness 8. Steam Tank Level Probe 3. 24v DC Power 9. Transducer 4. Solenoids 10. SSR Steam ...
