Single Group Display Removal and Replacement
Single Group Display Removal and Replacement
Time Needed: 15 Min
Parts Needed: Single Group Screen
Tools Needed: #2 Screwdriver, 5/64 Allen
Step 1: Turn off machine and unplug

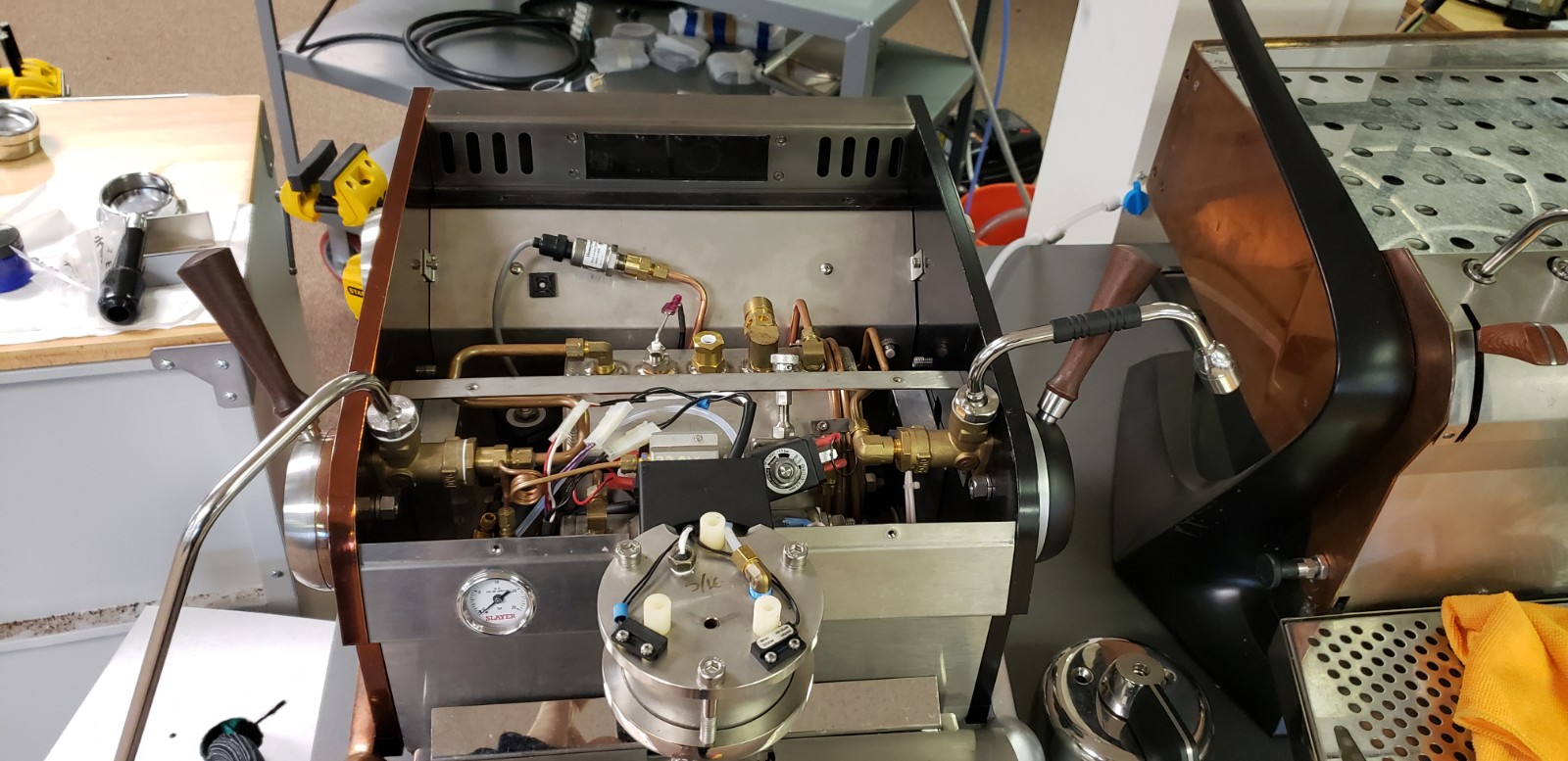

Step 2: Remove cup tray

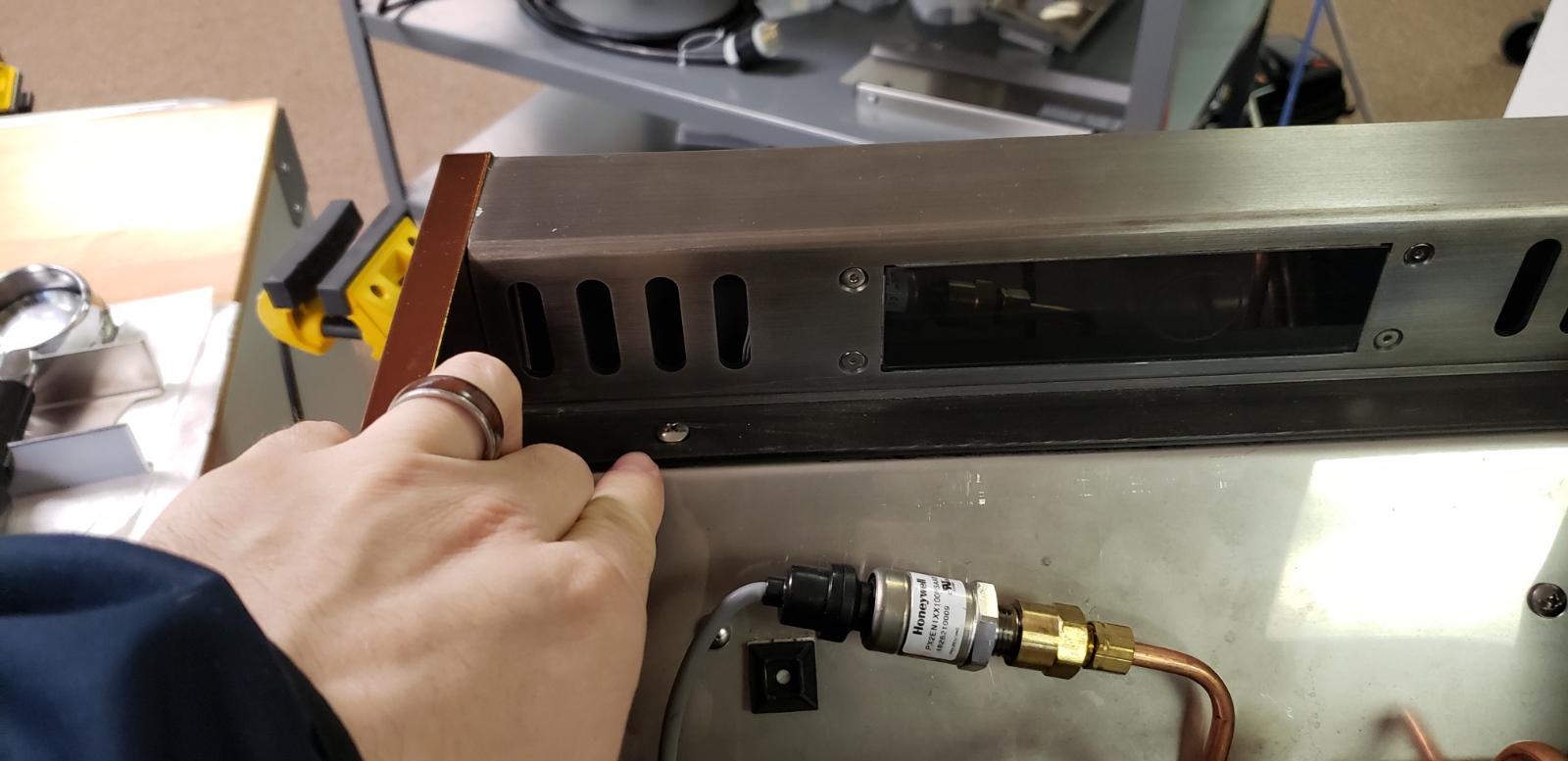

Step 3: Remove back panel, two screws under where cup tray sits

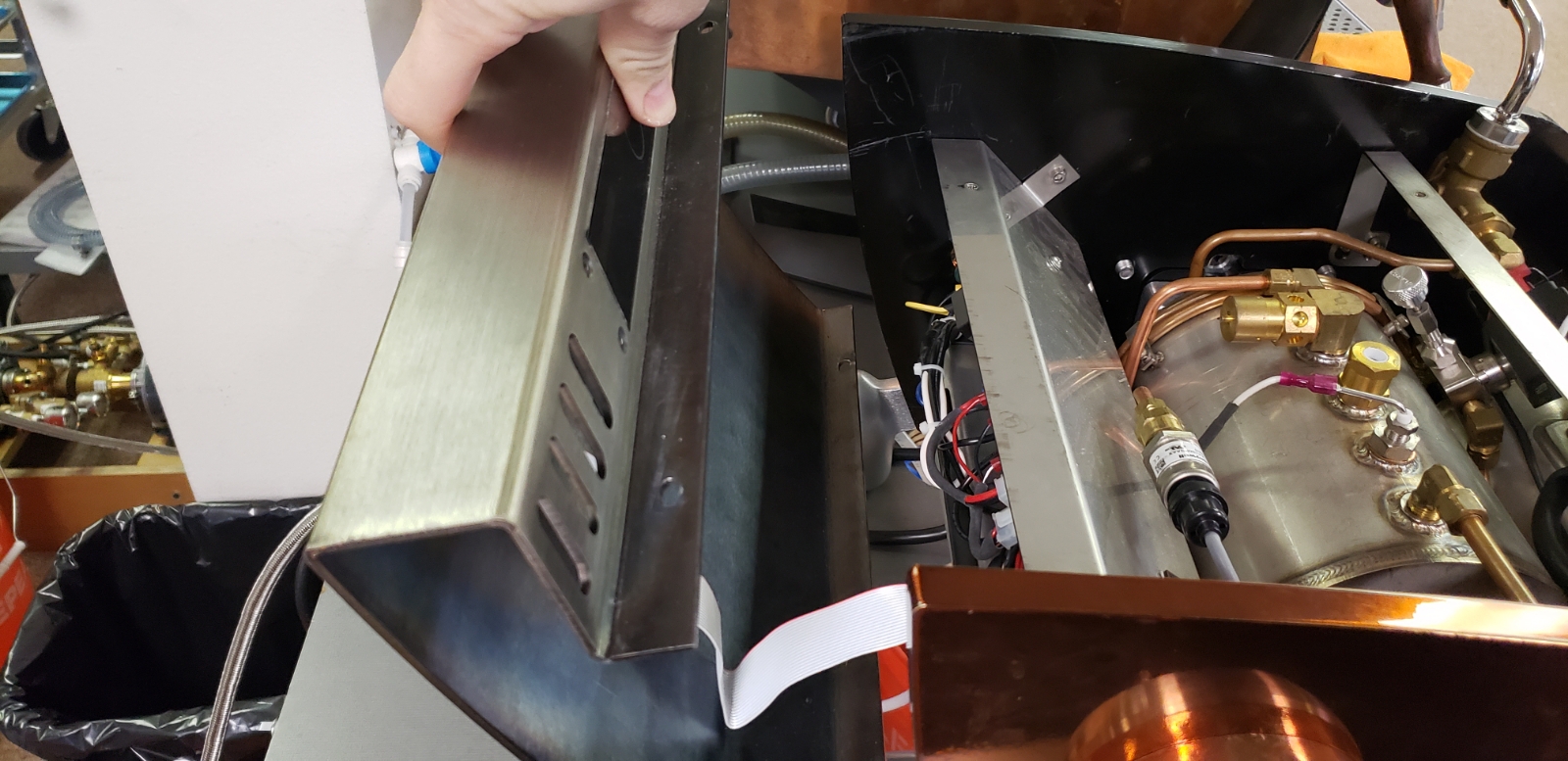

Step 4: Disconnect ribbon cable
Step 5: Remove screen with 5/64 allen
