Stuck Bypass Adjustment Single Group Rotary Pump

Time Needed: 10 Min

Tools Needed: Adjustable wrench

Turn off machine

Turn off water

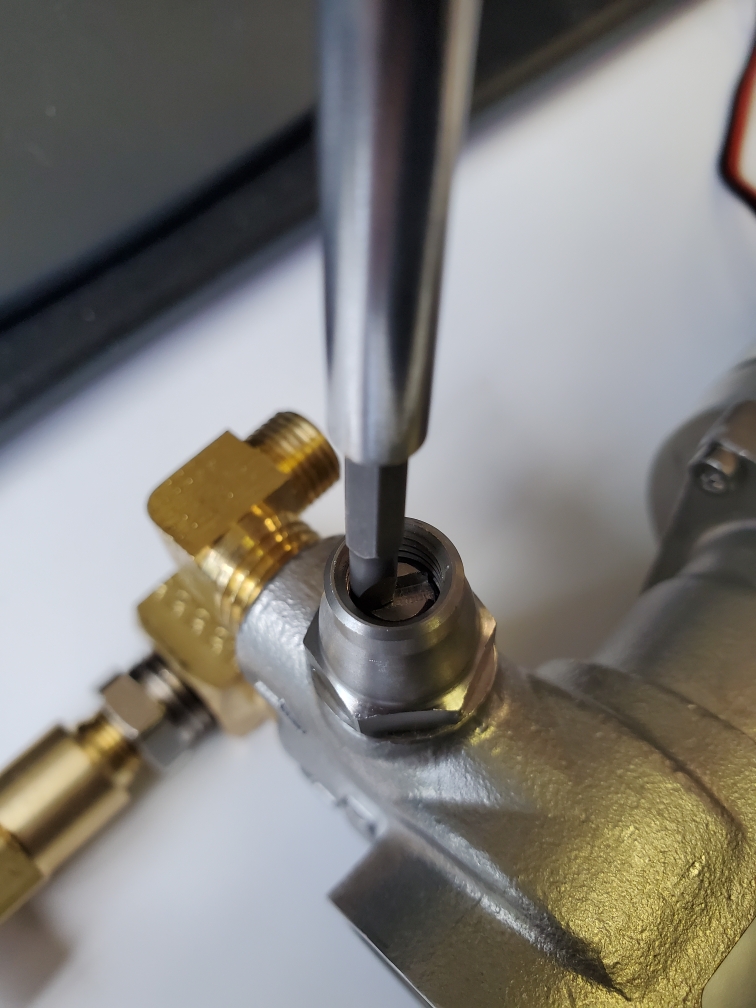

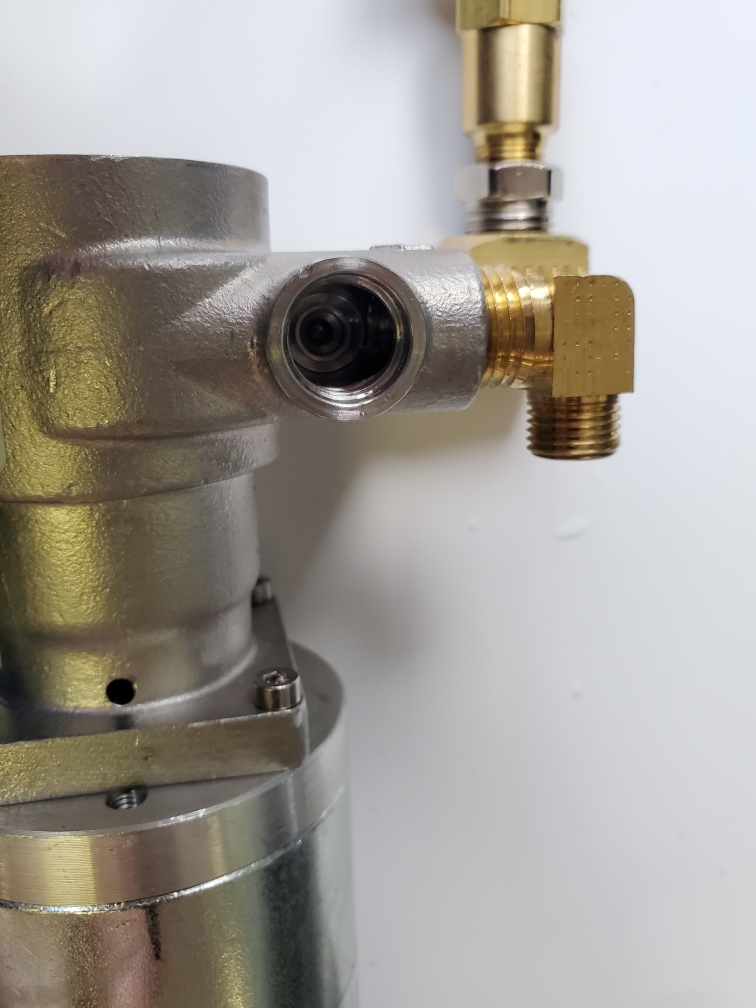

Use a screwdriver to adjust the screw 1/2 way out of the carriage.

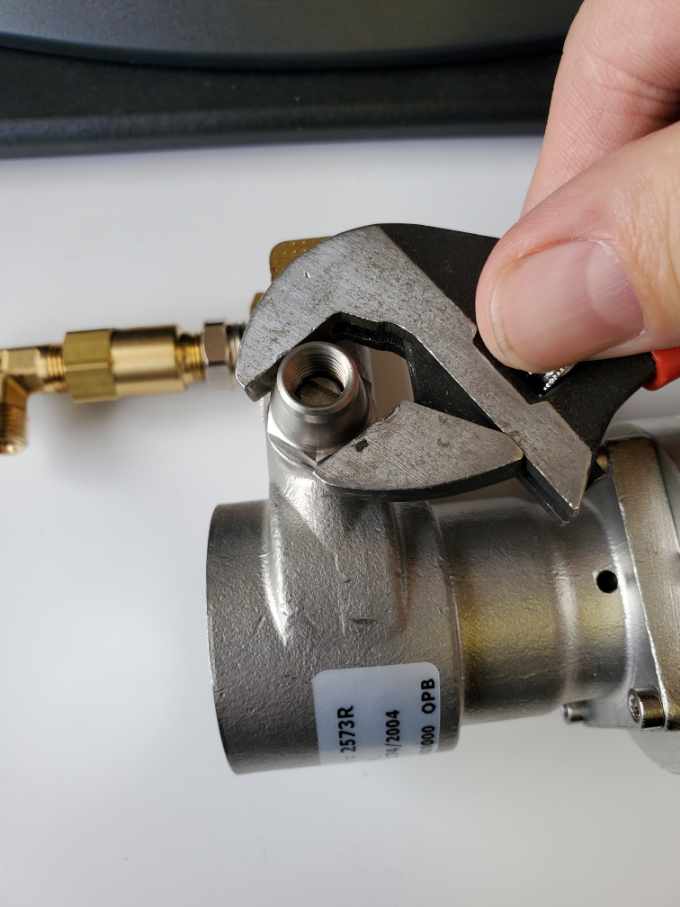

With adjustable wrench remove the fitting, be cautious as there is a spring and the parts could fall out.

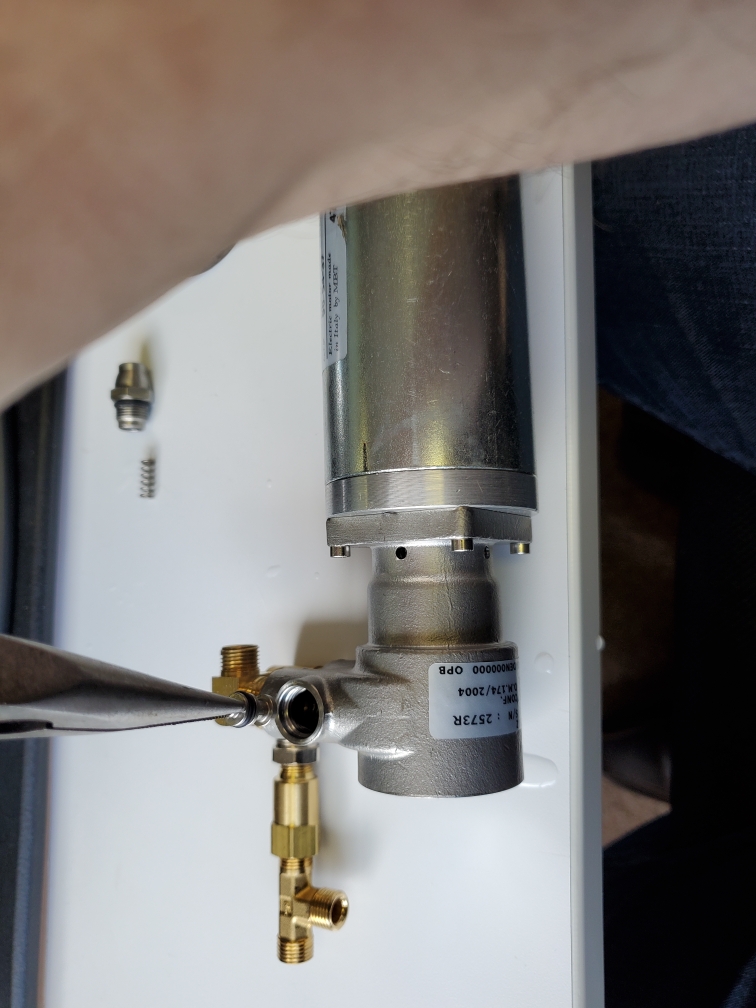

Remove all the pieces

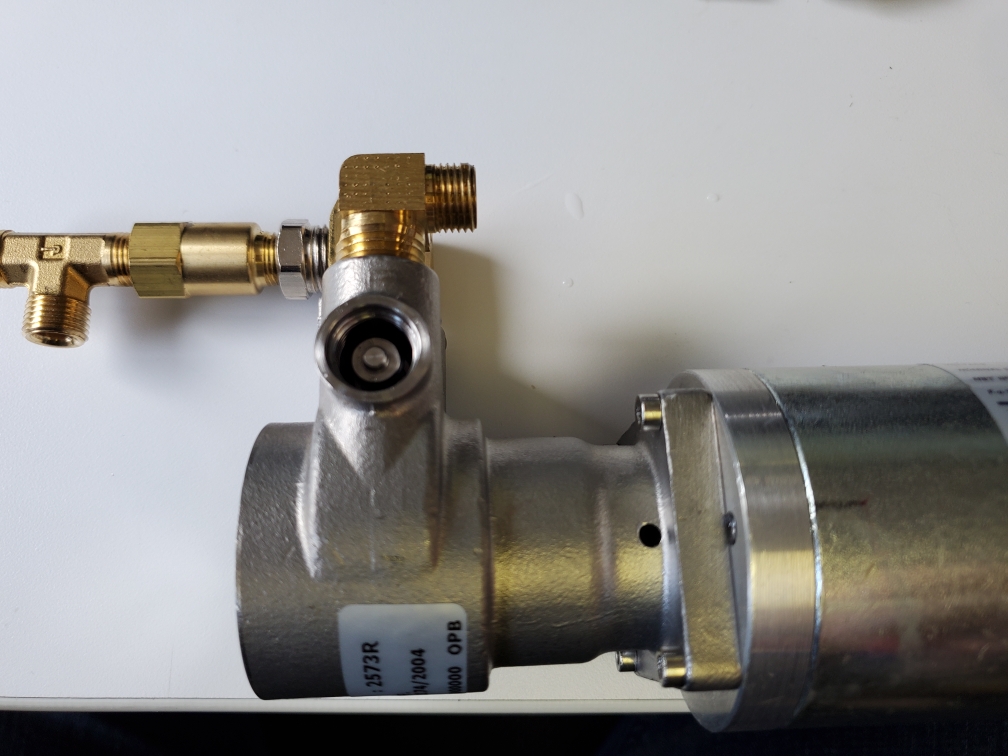

Reinsert the pieces in order
