Objective:
When servicing or replacing the parts listed below. SLAYER recommends applying a layer of thermal paste to reduce ambient heat absorption.

Time:
5 mins

Parts:
  1. 615001090 - HEAT TRANSFER PASTE (10 GR)
  2. Solid State Relay (SSR):
    1. 30005-20011 SOLID STATE RELAY, 20A, 24VDC
    2. 30000-20050 RELAY,SOLID STATE,40A
  3. High Limit Switch, threads only:
    1. 30000-20251 THERMOSTAT,110C
    2. 30000-20261 THERMOSTAT, 25A, 145C, STEAM TANK
  4. Power Supply:
    1. 30000-20004 POWER SUPPLY, 350W, MW, UHP



Tools:
  1. Thermal Paste or similar silicone-free heat sink compound rated at -40c to 200c.
  2. Small Brush
Example:

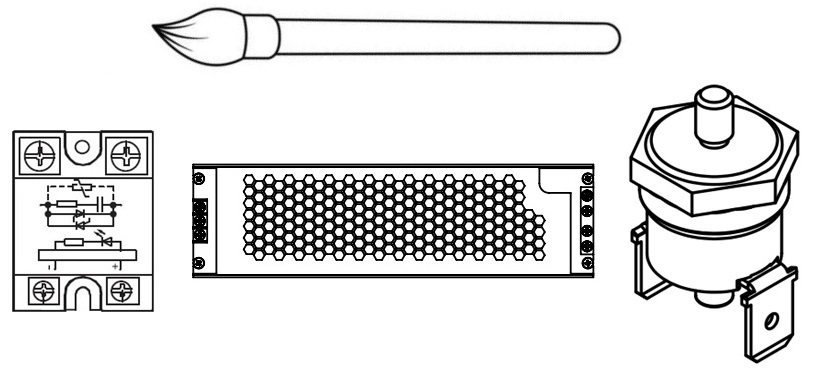

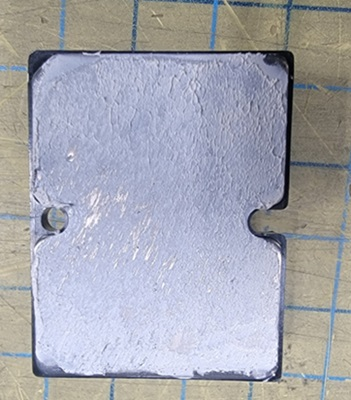

Apply a homogeneous layer of thermal paste to the backside of SSR, power supply, and high limit switch threads.


Info
Backside of SSR contacting electronics shield heat sink.


Questions or concerns? Please contact support@slayerespresso.com
