Wing Replacement, Steam Series
Wing Replacement
Time Needed: 1 hour

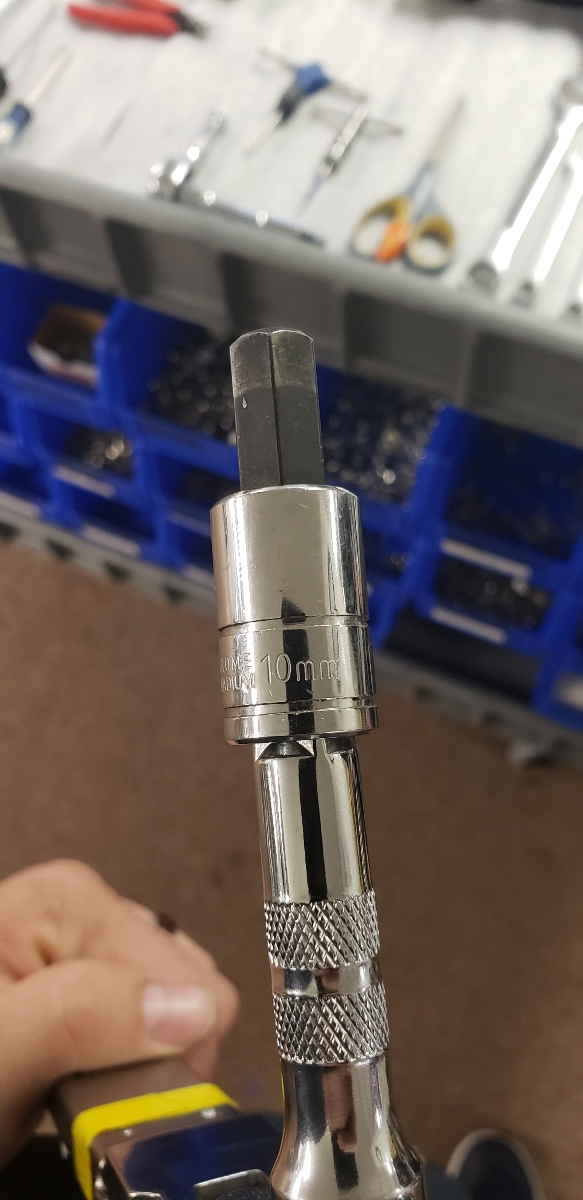

Tools Needed: #10 allen wrench, 10mm socket driver, Torque wrench set to 40 ft pounds, #1 phillips head screw driver
Shut down machine and turn off water, disconnect from power

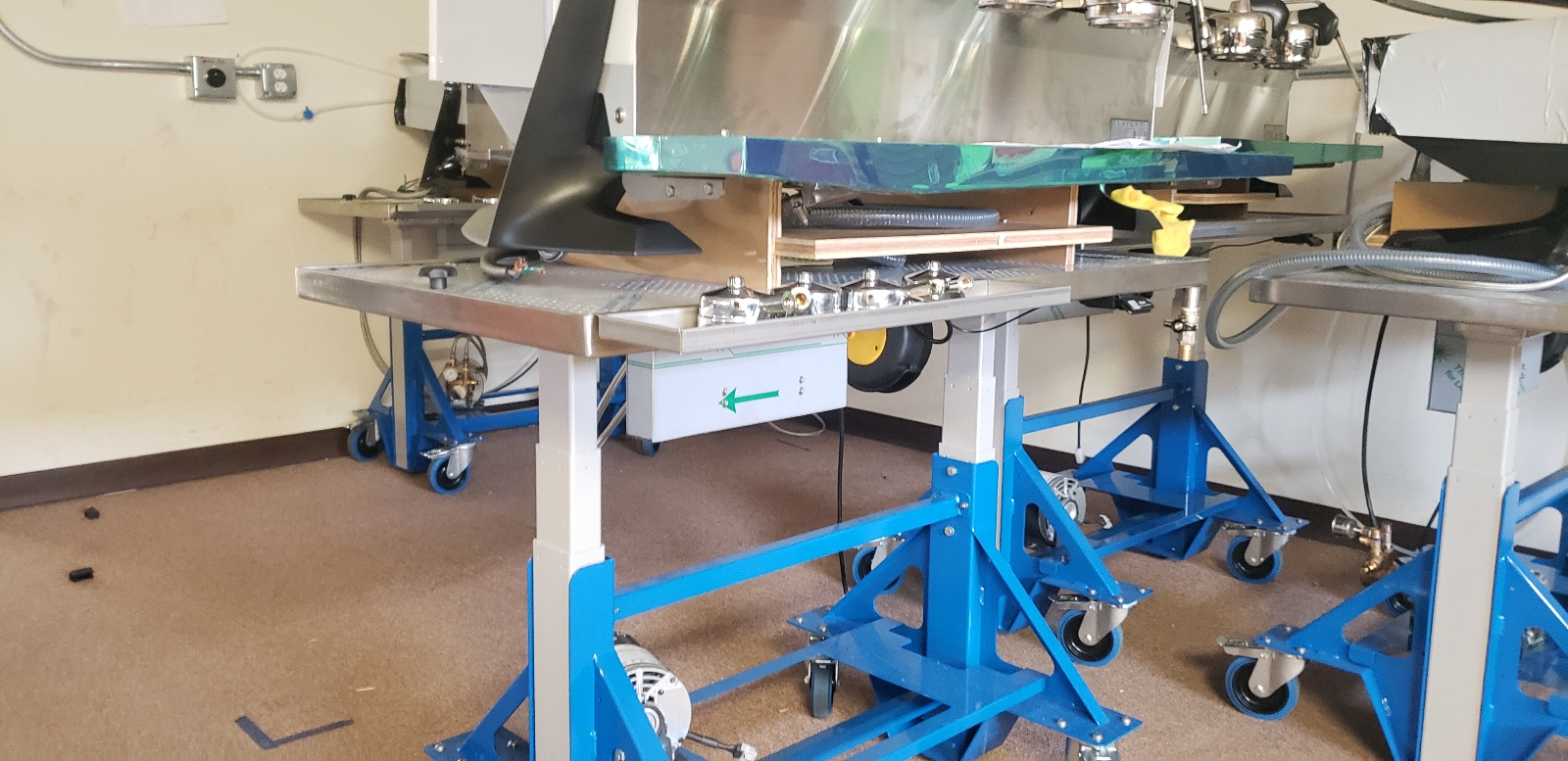

Elevate machine, We use a 1x6 plywood base.

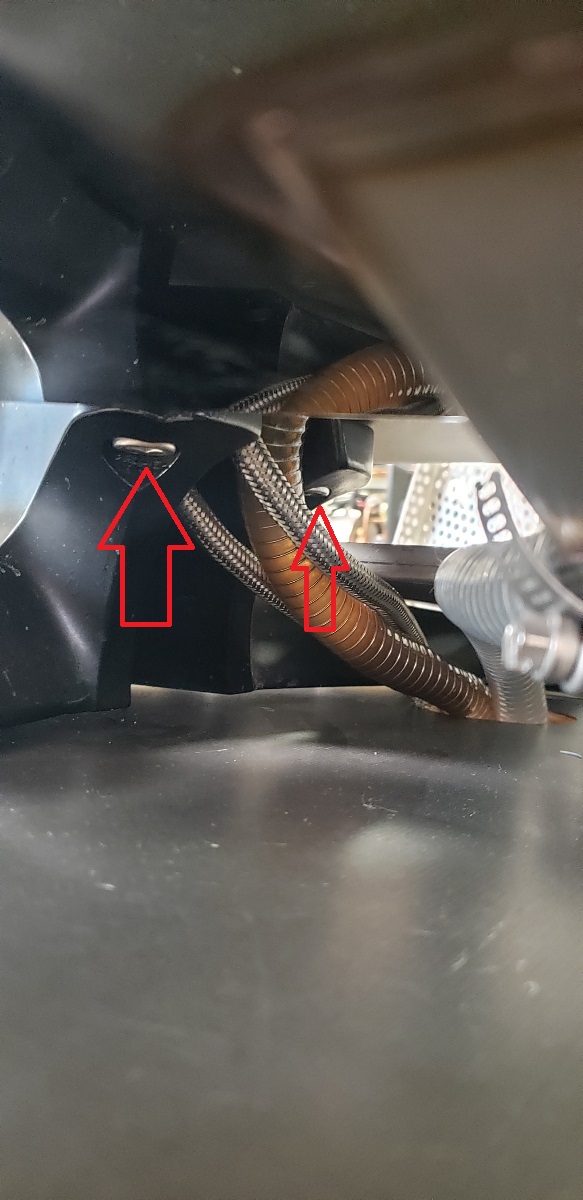

Using a #10 allen wrench loosen two bolts on bottom side of wing. Do not completely remove bolts and continue to next step

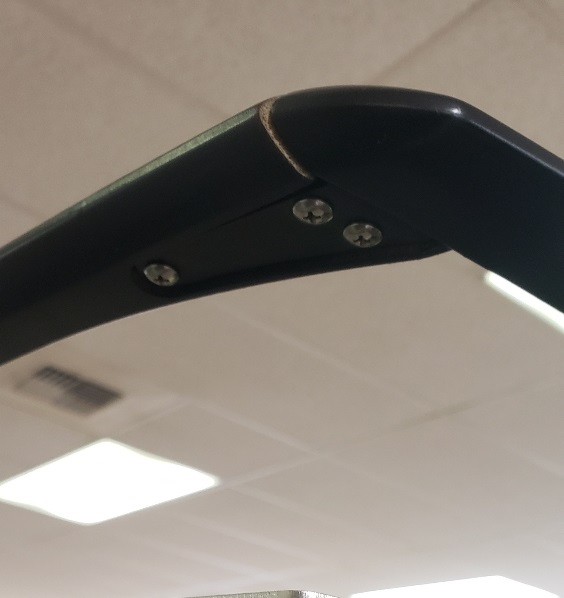

Remove screws attaching the cup rail to the wing. Remove the cup rail completely so remove all 6 screws on both sides.
Once the cup rail is removed, remove the wing.

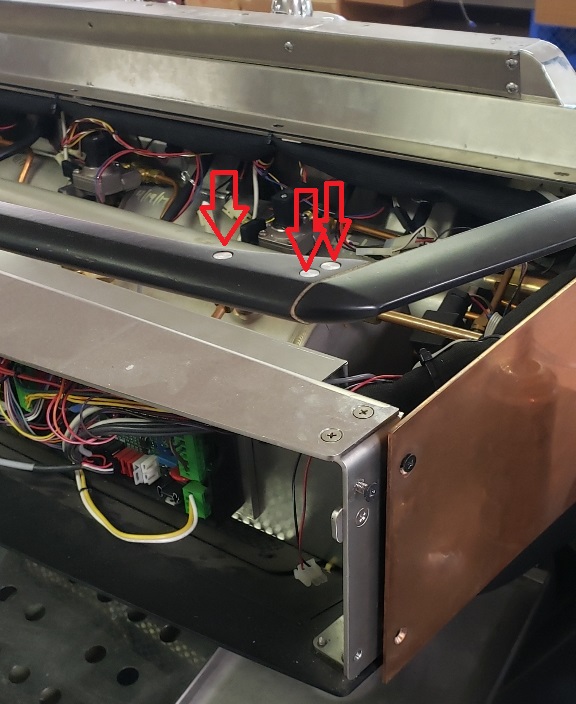

Install new wing, install the bottom bolts and leave loose
Install cup rail

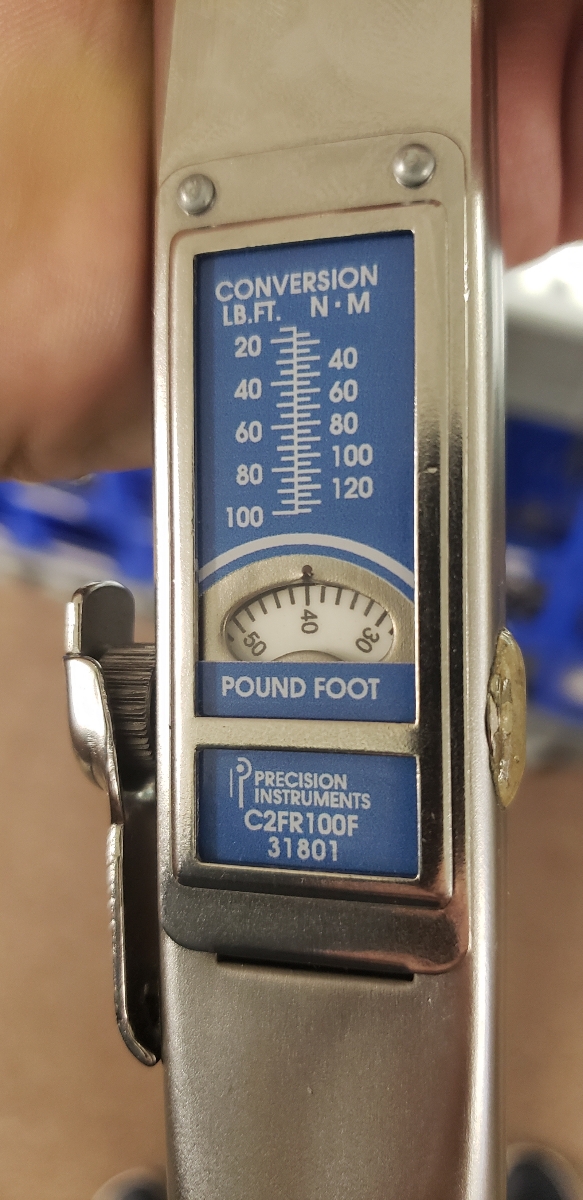

Tighten wing bolts with a torque wrench set to 40 Foot Pounds
