Steam EP, LP, & Single Decal - Application Guide



SLAYER Steam Series machines feature a script decal on the left rear panel. Applied in the factory or offered as a spare part, the guide below details decal placement.

Parts:
  1. 24005-10011 Steam Decal, Black
    1. Black & Anodized Steam EP
    2. Black Steam LP
    3. Steam Single
  2. 24005-10010 Steam Decal, Clear
    1. Bone Beige LP
    2. White LP
    3. Turquoise LP
    4. Mirror LP

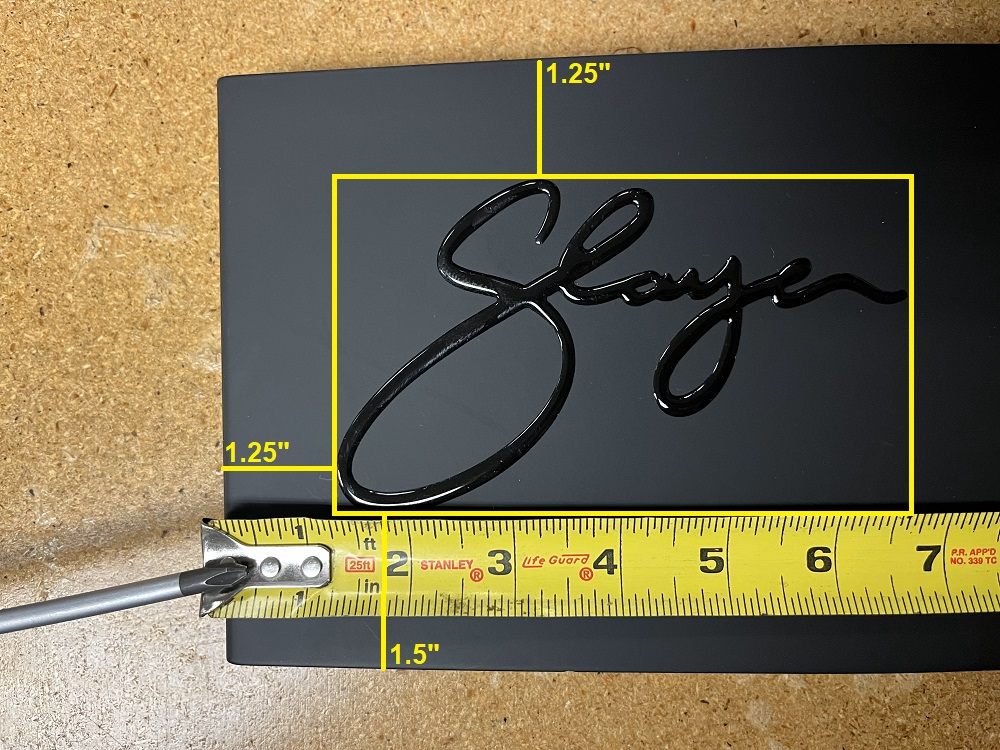

Application:
Warning
Clean panel surface prior to adhering decal!
  1. SLAYER Cosmetic Care Guide

AlertSLAYER recommends all service be performed by an experienced SLAYER Espresso trained technician. For a technician reference near you, please contact SLAYER Support at (206)-284-7171 (#1 in Directory) or email support@slayerespresso.com.



Questions or concern? Please contact SLAYER Support at support@slayerespresso.com or call 206 284 7171 (#1 in Directory).
