Love Control Errors


Slayer recommends that all service be performed by an experienced Slayer Espresso trained technician.

Objective:

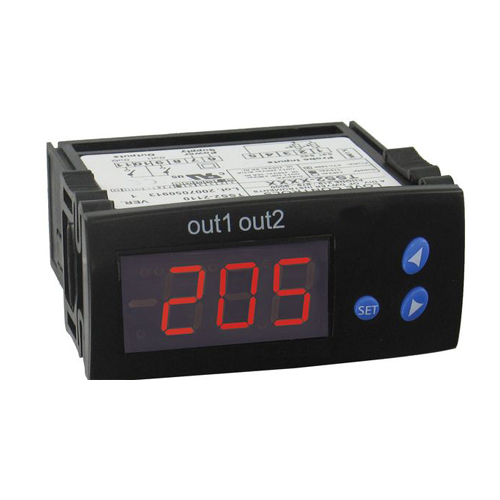

The Love Controller on the SLAYER V3 is the PID controller for both the pre-heat (SD1/Out1) and steam tanks (SD2/Out2). This guide outlines common error codes.

Parts:
30000-20220 LOVE CONTROLLER, PREHEAT AND STEAM

Error codes & Causes:
  1. 000+Beeping - Disconnected red wire on preheat thermocouple.
  2. ERP+Beeping - Disconnected red wire on steam thermocouple, or disconnected white wire on either preheat or steam thermocouple.
  3. --- + Beeping - Short circuit across pre-heat thermocouple red and white wire.
  4. AH1 - Maximum temperature alarm, probe 1.
  5. AL1 - Minimum temperature alarm, probe 1.
  6. AH2 - Maximum temperature alarm, probe 2.
  7. AL2 - Minimum temperature alarm, probe 2.
  8. Alternating ERP and pre-heat temp + Beeping - Short Circuit across steam thermocouple red and white wire.
Troubleshooting:
