Circuit Board Wiring - Steam Series
Steam EP & LP Board Wiring

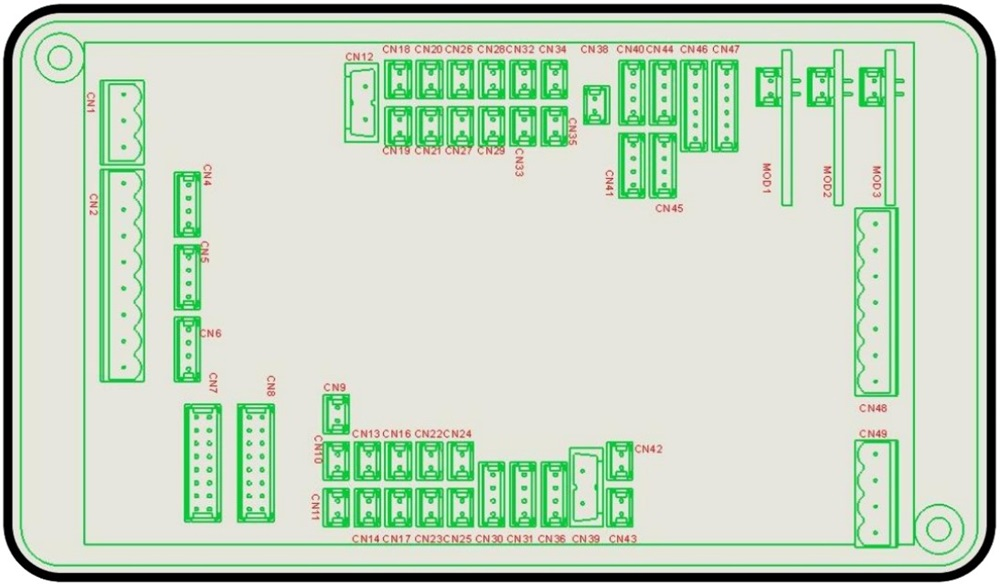

SLAYER recommends all service be performed by an experienced SLAYER Espresso trained technician. For a technician reference near you, please contact SLAYER Support at (206)-284-7171 (#1 in Directory) or email support@slayerespresso.com.SLAYER Steam Series (X, EP, & LP) operate off 24vDC Gicar circuit boards. Attached are wiring diagrams for the DC signal circuit which includes: solenoids, displays, flowmeters, temperature probes, and SSR DC signal circuit.
Circuit board wiring is subject to change. Please contact SLAYER Support with any questions.
Parts:
- 30005-10080-01 Steam EP Board
- 30005-10080-02 Steam LP Board
Firmware Update:
Firmware updates are available for Steam X, EP, & LP. To verify current firmware version, click HERE.
Questions or concerns? Please contact: support@slayerespresso.com - 206 284 7171 (#1 in Directory)
