Power Harness Wiring - Espresso V3


Alert
SLAYER recommends all service be performed by an experienced SLAYER Espresso trained technician. For a technician reference near you, please contact SLAYER Support at (206)-284-7171 (#1 in Directory) or email support@slayerespresso.com.

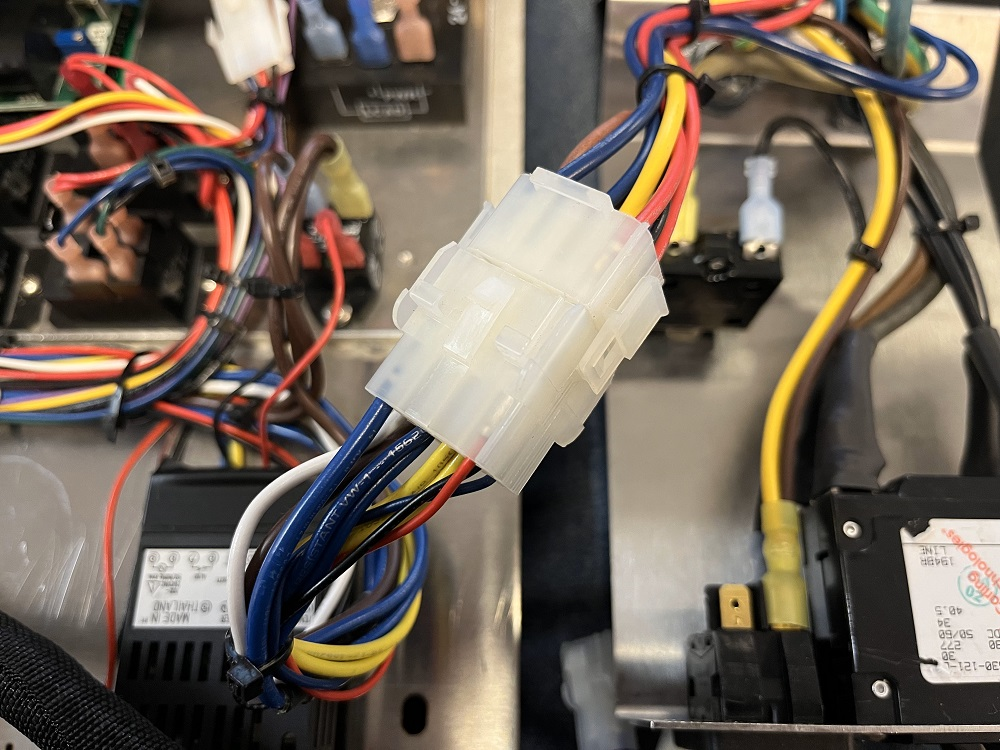

Harness wiring positions for the main Molex connection between the power terminal and electronics panel. Wire colors may differ based on year of manufacture. Please consult diagram below for reference and layout of V3 electronics panel:




Power Terminal Panel (Male) - Wire Positions
  1. 1 - Preheat SSR Signal Wire +3
  2. 2 - Steam and Preheat SSR Signal Wire -4
  3. 3 - Steam SSR Signal Wire +3
  4. 4 - Empty
  5. 5 - Power Switch
    1. Yellow
  6. 6 - Empty
  7. 7 - Empty
  8. 8 - Large Splice
  9. 9 - Empty
  10. 10 - Large Splice
  11. 11 - Pump
  12. 12 - Power Switch
Electronics Panel (Female) - Wire Positions
  1. 1 - Love Controller
    1. Position 8 - Preheat SSR Signal
  2. 2 - Love Controller
    1. Position 5 - Jumped
  3. 3 - Love Controller
    1. Position 11 - Steam SSR Signal
  4. 4 - Empty
  5. 5 - Power Supply and Fuji PID
    1. Yellow
  6. 6 - Empty
  7. 7 - Empty
  8. 8 - Power Supply and Fuji PID
    1. Blue
  9. 9 - Empty
  10. 10 - AC Brew Molex
  11. 11 - Pump Relay. Jumped
    1. Autofill Box (Controller) - Position FA9
  12. 12 - AC Brew SSR
Info
Wiring schematics available upon request.

Troubleshooting & Resources:
  1. Fuji PID Wiring
  2. Love Controller Wiring

Questions or concerns? Please contact: support@slayerespresso.com
