Objective:
Preventative Maintenance (PM) is... preventative(!) and commonplace for all espresso machines regardless of make and model. Similar to changing the oil in your car. PM is comprised of replacing a dozen or so wearable components at key contact points and safety mechanisms to ensure your SLAYER Espresso Machine exceeds expectations day in and day out.  PM components (listed HERE) are wearable by nature and should be regarded as the first line of defense against requiring emergency technical support!

PM components are intended to be replaced annually on three, six, and twelve month intervals* and recommended (on the twelfth month) to be serviced by an experienced SLAYER trained technician. For a list of SLAYER technician references in your area: please contact support@slayerespresso.com or call 206 284 7171 (#1 in the Directory).

Additionally, maintaining your SLAYER results in great tasting espresso and unrivaled steam quality. Who could ask for more?!

*See Post Service Checklist & Resources Section for further details.

Parts:
  1. SLAYER Preventative Maintenance Kits
    1. 86000-20102 2g SLAYER Espresso V3 PM Kit
    2. 86000 -20101 3g SLAYER Espresso V3 PM Kit



Daily:
  1. Routine Backflush
  2. Soak dispersion dispersion screen & screw in espresso cleaner.
    1. Inspect dispersion screen & screw for blemishes and faults.
  3. Soak portafilter bodies in espresso cleaner.
    1. Do not submerge portafilter handles!
  4. Wipe surfaces with clean microfiber cloth.
    1. Cosmetic Care Instructions
Idea
1.5g of SLAYER Espresso Cleaner is sufficient during backflush!



Quarterly PM: Every 3 Months
Replace group gasket, dispersion screen & screw, and portafilter baskets & springs.
  1. Replacing Group Head Gasket
3 Month PM Parts:
  1. 46000-56091 PORTAFILTER GASKET
  2. 46000-50073 NANO COATED SHOWER SCREEN
  3. 46000-50080 DIFFUSER SCREW, STAINLESS



Bi-Annual PM: Every Six Months
  1. Drain steam and brew tanks.
  2. Replace group gaskets, dispersion screen & screw, portafilter baskets & springs as instructed in Quarterly PM.

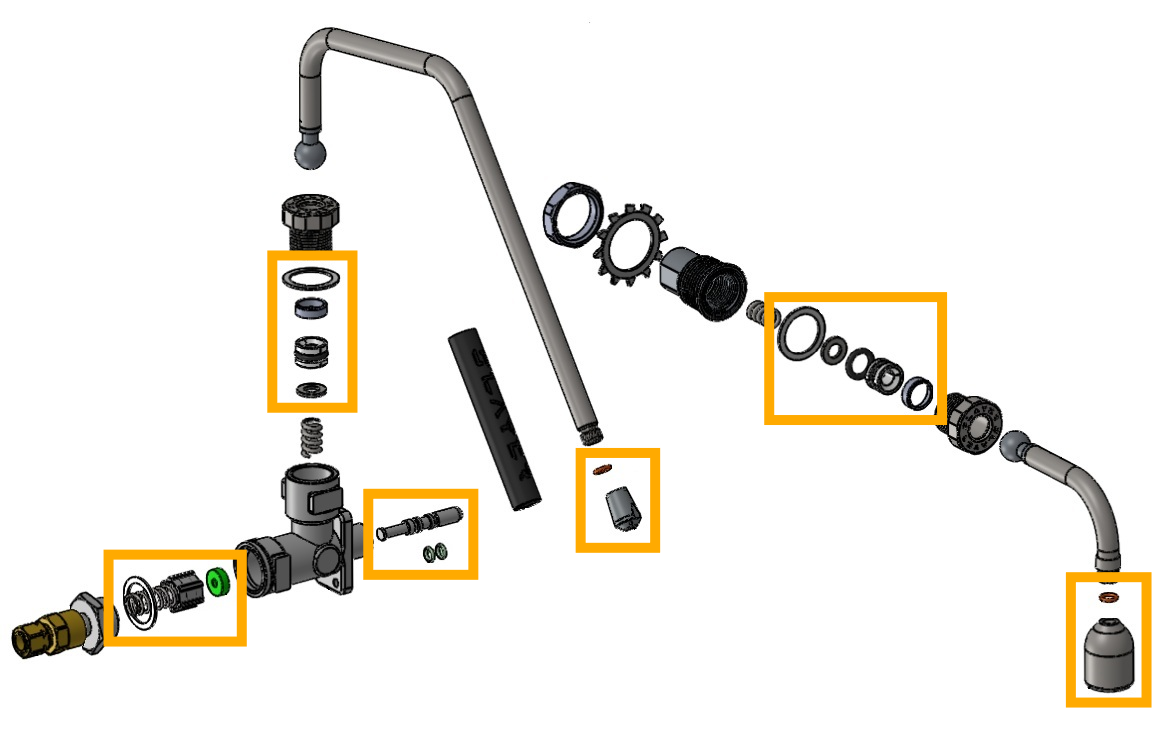

  3. Rebuild steam valves & hot water wand assemblies.
    1. Only apply SLAYER Lube to valve pin o-rings.
    1. Inspect steam tip and hot water spout for obstructions and scale build up.
    2. Steam Valve Rebuild - Espresso V3/Single (Video)
  4. Verify water against SLAYER's Water Treatment Requirements.
6 Month PM Parts:
  1. 46000-50030 O RING FOR STEAM TIP, 1.5 X 6
  2. 46005-53110 STEAM SEAL
  3. 46005-53061 WAND BUSHING
    1. 46000-53050 O-RING FOR WAND BUSHING
  4. 46900-10010 STEAM VALVE REBUILD KIT
  5. 46000-53070 TEFLON GASKET STEAM VALVE BREW ACTUATOR, 27
  6. 46000-56091 PORTAFILTER GASKET
  7. 46000-50073 NANO COATED SHOWER SCREEN
  8. 46000-50080 DIFFUSER SCREW, STAINLESS

AlertUsing only water as a lubricant, do not apply SLAYER Lube to Steam Seal, Wand Bushing, or wand ball joint interface. Introducing lube to the ball joint can cause wand flop.



Annual PM: Every Twelve Months
  1. Drain steam and brew tanks.
  2. Replace group gasket, inspect dispersion screen & screw, and portafilter baskets & springs as instructed in Quarterly PM.
  3. Verify water against SLAYER's Water Treatment Requirements.
Idea
Pro Tip: During service and mechanical disassembly, clean and visually inspect machine for areas of concern or debris accumulation. Espresso machines tend to collect all matters of dust and coffee debris that can be troublesome down the road. A well maintained SLAYER is easier to service!
Rebuild:
  1. Rebuild Steam Valve & Hot Water wand assemblies as instructed in Bi-Annual PM.

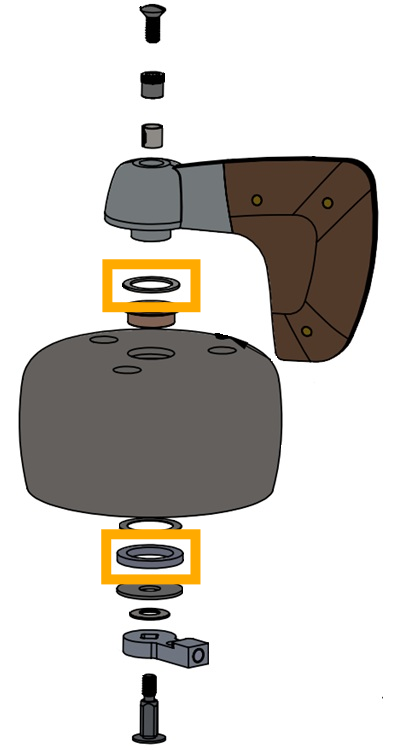

  2. Group Actuator
    1. Step 4 details PM components.

Replace:

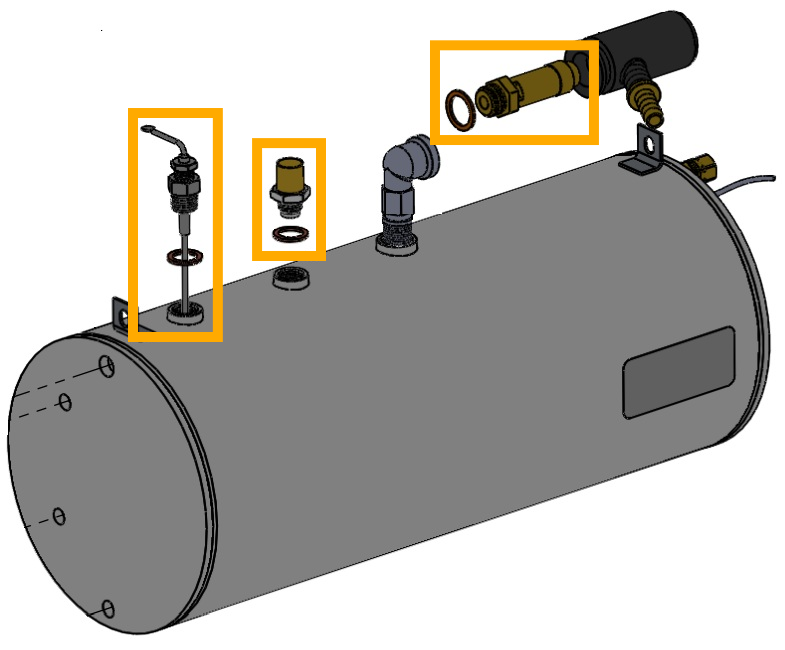

  1. Vacuum Breaker, Pressure Relief Valve, and Level Probe.
    1. PRV discharge boot is not a PM component.
    1. Apply several wraps of teflon tape to threads prior to installation.
      1. Do not forget copper crush washers!

Replace:
  1. Expansion Valve:
    1. Apply several wraps of teflon tape to threads prior to installation.
    2. Calibrate Expansion Valve - V3

Idea
46000-50110 EXPANSION VALVE sold in PM kits and as a spare part are not calibrated from factory!

Replace:
  1. Brew Valve Discharge Tubing
  2. 40000-32180 EPDM Rubber Tubing 5/16" ID, 7/16" OD
    1. 2G: 40"
    2. 3G: 70"


*Group cap removed for illustration purposes.

Warning
It is imperative to replace EPDM Brew Valve Discharge Tubing annually!

12 Month PM Parts:
  1. 46000-50030 O RING FOR STEAM TIP, 1.5 X 6
  2. 46005-53110 STEAM SEAL
  3. 46005-53061 WAND BUSHING
    1. 46000-53050 O-RING FOR WAND BUSHING
  4. 46900-10010 STEAM VALVE REBUILD KIT
  5. 46000-53070 TEFLON GASKET 27MM
  6. 46000-56091 PORTAFILTER GASKET
  7. 46000-50073 NANO COATED SHOWER SCREEN
  8. 46000-50080 DIFFUSER SCREW, STAINLESS
  9. 10000-16210 SPACER
  10. 46000-50110 EXPANSION VALVE
  11. 40000-32180 EPDM RUBBER TUBING, 5/16 ID X 7/16 OD
    1. 2G - 40"
    2. 3G - 70"
  12. 30004-50170 WATER LEVEL PROBE SLAYER ESPRESSO, 115mm
  13. 46000-50150 GASKET , COPPER, FLAT, 19X13.5X1.5mm
  14. 46000-50400 CB PRV, 1.9 BAR
  15. 46000-50130 GASKET, COPPER ,FLAT, 22X17X1.5mm
  16. 46000-50140 VALVE, ANTI-SUCTION/VACUUM, 1/4"




Post Service Checklist & Resources:

Idea
SLAYER Preventative Maintenance Note: All SLAYER PM Guides and Kits are built around quarterly service. In general, this is suitable for home and commercial users alike. However, there are various factors which may increase service frequencies such as: cafe volume, water quality, environment, misuse, and disregard for regular service. SLAYER recommends evaluating these variables with a local service technician to curate an appropriate maintenance schedule to fit your needs.

After preventative maintenance service has been completed. SLAYER recommends the following tests once the machine has returned to set temperature and pressure.

Checklist:
  1. Confirm no leaks are present and machine has safely reached set temperature and pressure.
  2. Verify brew pump pressure.
    1. Set rotary vane pump to 10 bars with a blank portafilter.
    2. Pump Adjustment.
      1. Observable on group head gauges.
  3. Actuate contact points.
    1. Brew Actuator:
      1. Pre-Full-Post Brew.
      2. Brew Actuator Tension.
    2. Steam Actuator:
      1. Smooth actuation.
      2. Does not automatically rotate to OFF position.
      3. Steam Actuator Stack/Tension.
  4. Needle Valve 'Pre-Brew' Calibration.
    1. Dial in and evaluate a few extractions.
  5. Verify water against SLAYER's Water Treatment Requirements.
  6. Log anomalies.
Resources:
  1. Espresso V3 User Manual
  2. Espresso V3 Parts Diagram
  3. Preventative Maintenance Kits
Alert
SLAYER recommends all service be performed by an experienced SLAYER Espresso trained technician. For a technician reference near you, please contact SLAYER Support at (206)-284-7171 (#1 in Directory) or email support@slayerespresso.com.



Questions or concerns? Please contact support@slayerespresso.com
